Meling Biomedical

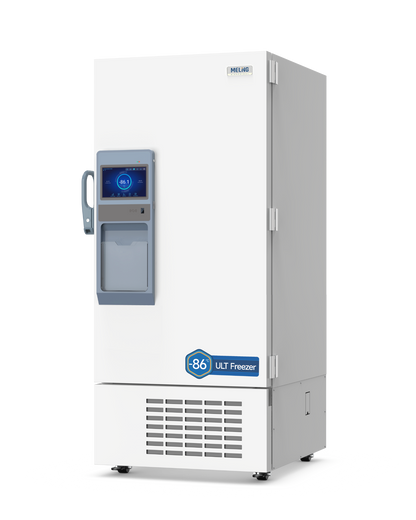

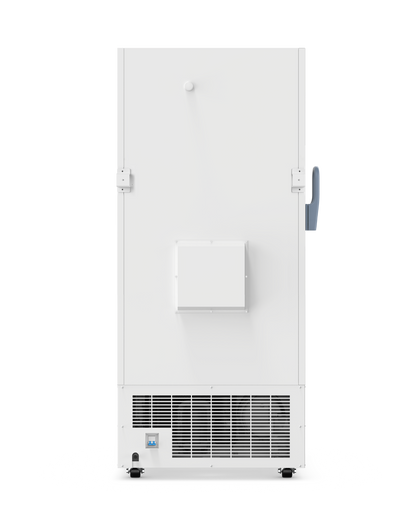

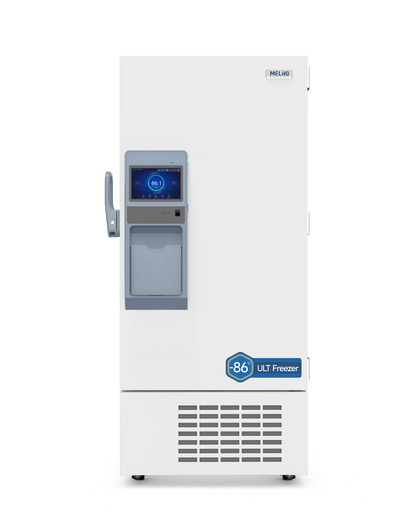

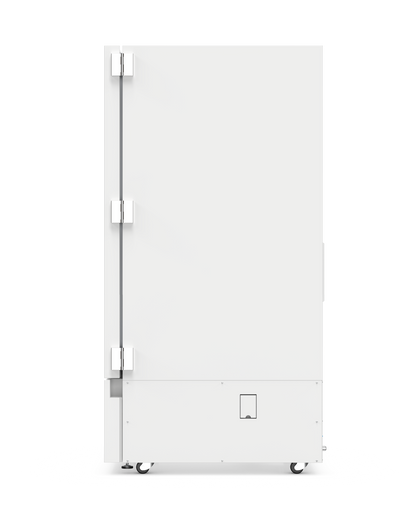

DW-HL530 Ultra-Low Freezer
DW-HL530 Ultra-Low Freezer
- 530 L
- −40°C to −86°C
- Dual cooling
UL/cUL listed for the United States and Canada.
Dual Cooling System
The Meling Biomedical DW-HL530 features two independent refrigeration systems and two inverter compressors. If either compressor stops, the remaining independent system can maintain the freezer at approximately −80°C, providing backup cooling for stored samples.
Product Overview
The freezer provides 530 L (18.72 cu. ft.) of ultra-low temperature storage within an upright cabinet, with an adjustable temperature range of −40°C to −86°C. It combines microprocessor temperature control, a 10-inch HD LCD touchscreen, VIP insulation, temperature logging and multiple alarm functions. The cabinet measures 930 × 1,041 × 1,947 mm (W × D × H) and includes three stainless steel shelves and insulated inner doors.
Certifications
- UL/cUL listed for the United States and Canada
Temperature Control and Refrigeration
The DW-HL530 uses a microprocessor controller and a 10-inch HD LCD touchscreen. Its two independent refrigeration systems use inverter compressors, direct cooling, manual defrosting and hydrocarbon (HC) refrigerant.
Manufacturer internal testing reports the following typical performance:
- Pull-down time to −80°C: 185 minutes, equivalent to 3 hours and 5 minutes
- Temperature recovery after a one-minute door opening: 24.5 minutes
- Daily energy consumption: 7.3 kWh per 24 hours
These figures are based on internal testing at a −80°C set point and a 25°C ambient temperature.
Temperature Logging and Monitoring
The built-in data logger records temperature every five minutes and stores up to 10 years of temperature data. A USB port supports data export.
An RS485 interface and remote alarm contact provide additional connection options. The freezer also includes a backup battery and two access ports, each 25 mm in diameter.
Alarm Functions
The DW-HL530 provides alarms for:
- High and low storage temperatures
- High ambient temperature
- Temperature sensor fault
- Power failure
- Low battery
- Ambient sensor fault
- Battery power check fault
- Communication fault
- Door opening timeout
- A/B system fault
- High pressure

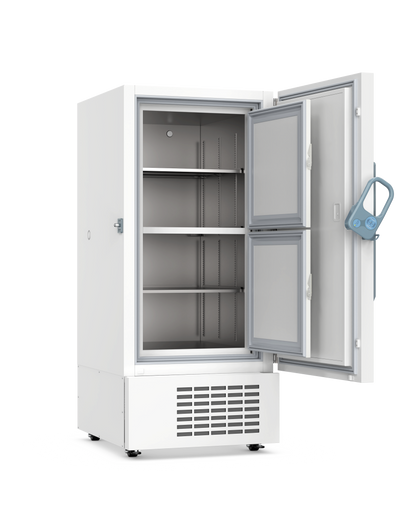

Cabinet Features
- Three stainless steel shelves
- Insulated inner doors
- VIP insulation
- Cold-rolled steel exterior
- Stainless steel interior
- Ergonomic door handle
- Heated vacuum relief port
- Optional card and fingerprint access
- Circuit breaker for electrical protection
- Two access ports, each 25 mm in diameter
- Four heavy-duty casters and two leveling feet
Freezer Rack Capacity
The brochure lists freezer rack model ZKL304-552B-CT, with capacity for 16 racks and 400 freezer boxes.
Electrical Specifications
The manufacturer’s brochure lists the following power supply and rated current:
| Power supply (V/Hz) | Rated current (A) |
|---|---|
| 110–230 V / 50/60 Hz | 13.42 A |
Main Specifications
| Specification | DW-HL530 |
|---|---|
| Capacity | 530 L / 18.72 cu. ft. |
| Temperature range | −40°C to −86°C |
| Cooling performance | −86°C |
| Ambient temperature range | 16°C to 32°C |
| Climate class | N |
| Controller | Microprocessor |
| Display | 10-inch HD LCD touchscreen |
| Refrigeration systems | 2 independent systems |
| Number of compressors | 2 |
| Compressor technology | Inverter |
| Operation with one compressor stopped | Remaining independent system can maintain approximately −80°C |
| Pull-down time to −80°C | 185 minutes / 3 hours and 5 minutes |
| Temperature recovery after a one-minute door opening | 24.5 minutes |
| Typical daily energy consumption | 7.3 kWh per 24 hours |
| Cooling method | Direct cooling |
| Defrost mode | Manual |
| Refrigerant | Hydrocarbon (HC) |
| Insulation | VIP insulation |
| Insulation thickness | D: 117 mm; L/R: 130 mm; B: 130 mm |
| Exterior material | Cold-rolled steel |
| Interior material | Stainless steel |
| Shelves | 3 stainless steel shelves |
| Internal dimensions, W × D × H | 585 × 696 × 1,266 mm / approximately 23.03 × 27.40 × 49.84 in |
| External dimensions, W × D × H | 930 × 1,041 × 1,947 mm / approximately 36.61 × 40.98 × 76.65 in |
| Package dimensions, W × D × H | 1,020 × 1,140 × 2,132 mm / approximately 40.16 × 44.88 × 83.94 in |
| Net weight | 276 kg |
| Gross weight, paper packaging | 332 kg |
| Gross weight, wooden packaging | 365 kg |
| Inner doors | Insulated |
| Door handle | Ergonomic |
| Heated vacuum relief port | Included |
| Card and fingerprint access | Optional |
| Circuit breaker | Included |
| Access ports | 2, each 25 mm in diameter |
| Mobility | 4 heavy-duty casters and 2 leveling feet |
| Temperature recording interval | Every 5 minutes |
| Data storage capacity | Up to 10 years of temperature data |
| Data export | USB |
| Interfaces | RS485 and remote alarm contact |
| Backup battery | Included |
| Freezer rack model | ZKL304-552B-CT |
| Freezer rack capacity | 16 racks |
| Freezer box capacity with racks | 400 boxes |
| Certifications and markings | UL/cUL listed |
