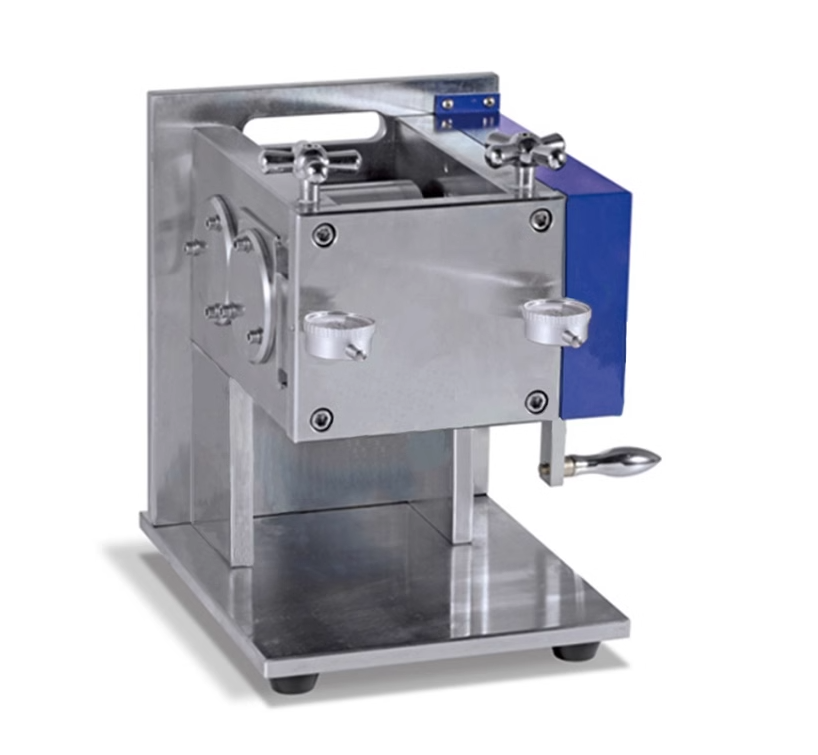

Roller Press -Manual Cold Calender, Top Vertical Feeding

Compact design for electrode calendaring
High quality hardened rolls, fine polished
High precision gearing system
Ideal for most thin/soft metal sheets/foils
Roller hardness HRC62
Precision +/-0.005mm
One year standard limited warranty

Model	Roller Size (DxL)	Gap	Dimensions	Weight
RPC-MC0404W	96x100mm	0-2mm	41x36x24 cm	50 kg
RPC-MC0408W	96x200mm	0-3mm	41x36x40 cm	60 kg
RPC-MC0412W	96x300mm	0-3mm	41x36x60 cm	75 kg
