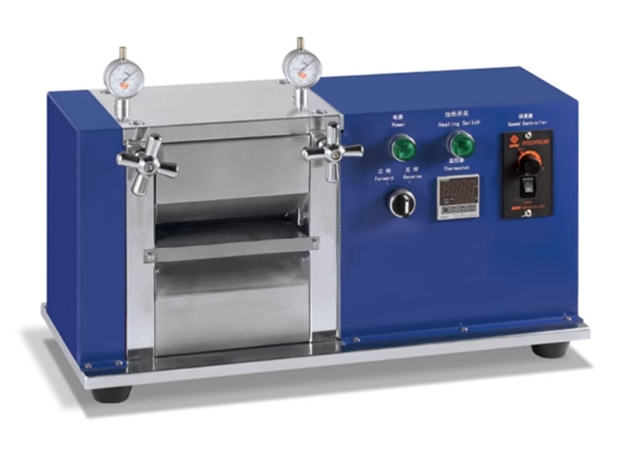

Roller Press -Electric Heated Calender
Roller Press -Electric Heated Calender
Regular price
$8,358.00 CAD
Regular price
Sale price
$8,358.00 CAD
Unit price
per
Couldn't load pickup availability
Compact design for electrode calendaring
High quality hardened rolls, fine polished
High precision gearing system
AC motor driven rolling
Running/rolling speed 0-40mm/s
Electric heating 800W
Rolling temperature RM~130°C, +/-0.5°C
PID digital temperature controller
Suitable for normal glovebox use
Ideal for most thin/soft metal sheets/foils
Roller hardness HRC62
Precision +/-0.005mm
One year standard limited warranty
High quality hardened rolls, fine polished
High precision gearing system
AC motor driven rolling
Running/rolling speed 0-40mm/s
Electric heating 800W
Rolling temperature RM~130°C, +/-0.5°C
PID digital temperature controller
Suitable for normal glovebox use
Ideal for most thin/soft metal sheets/foils
Roller hardness HRC62
Precision +/-0.005mm
One year standard limited warranty
| Model | Roller Size (DxL) | Gap | Dimensions | Weight |
| RPC-EH0404 | 96x100mm | 0-2mm | 50x36x24 cm | 65 kg |
| RPC-EH0408 | 96x200mm | 0-2mm | 60x36x40 cm | 75 kg |
| RPC-EH0412 | 96x300mm | 0-2mm | 75x36x60 cm | 85 kg |
