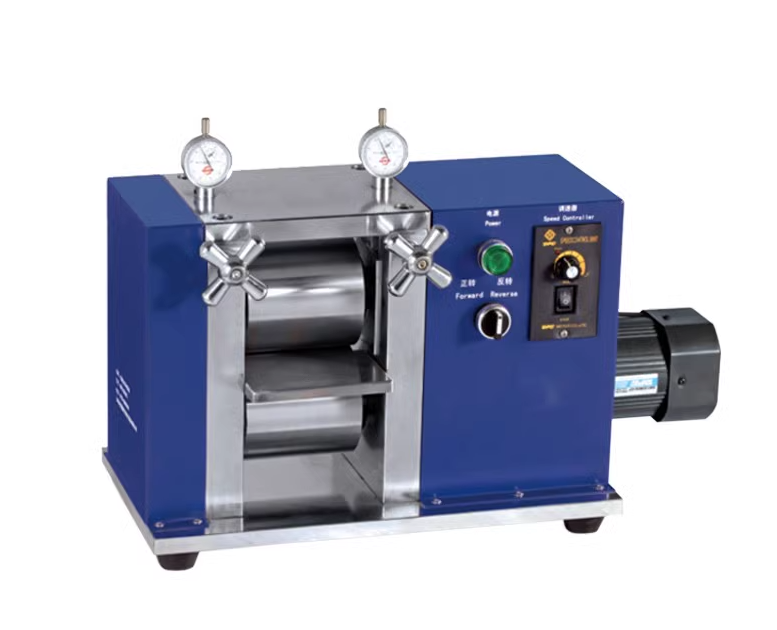

Roller Press -Electric Cold Calender
Roller Press -Electric Cold Calender
Regular price
$7,580.00 CAD
Regular price
Sale price
$7,580.00 CAD
Quantity
Compact design for electrode calendaring
High quality hardened rolls, fine polished
High precision gearing system
AC motor driven rolling
Running/rolling speed 0-40mm/s
Suitable for normal glovebox use
Ideal for most thin/soft metal sheets/foils
Roller hardness HRC62
Precision +/-0.005mm
One year standard limited warranty
High quality hardened rolls, fine polished
High precision gearing system
AC motor driven rolling
Running/rolling speed 0-40mm/s
Suitable for normal glovebox use
Ideal for most thin/soft metal sheets/foils
Roller hardness HRC62
Precision +/-0.005mm
One year standard limited warranty
| Model | Roller Size (DxL) | Gap | Dimensions | Weight |
| RPC-EC0404 | 96x100mm | 0-2mm | 41x36x24 cm | 60 kg |
| RPC-EC0408 | 96x200mm | 0-2mm | 41x36x40 cm | 65 kg |
| RPC-EC0412 | 96x300mm | 0-2mm | 41x36x60 cm | 80 kg |
