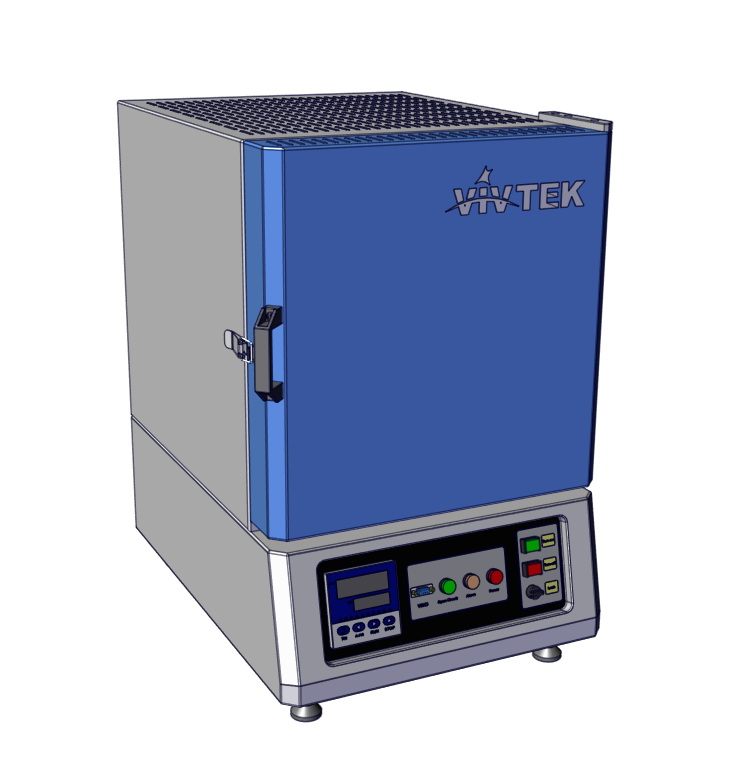

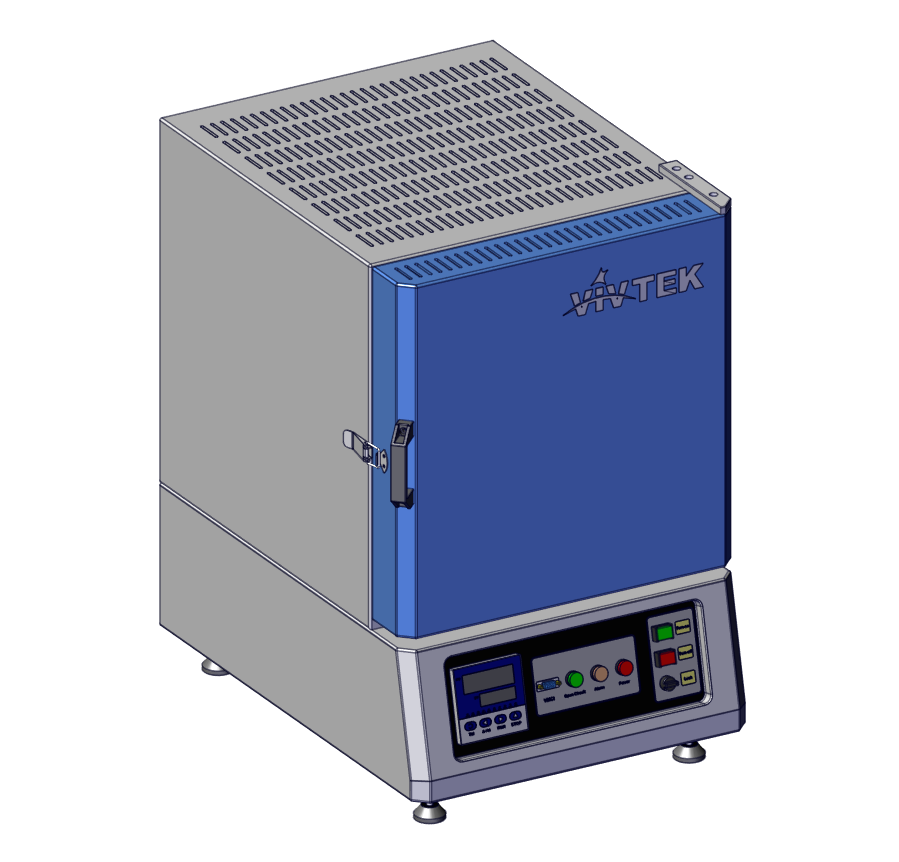

Muffle Box Furnaces --- 1400°C 12/36/80L

Double-shell steel structure
Air-cooling between the inner and outer chamber walls
Maximum temperature, 1400℃
Continuous working temperature, 1350℃
Temperature is controlled at +/-1℃ with 40-segment programmable controller (PID)
Heating rate, 0-20℃
Auto over-temperature protection
Insulation material refractory alumina (<1600℃)
Built-in heating SiC U-Shape rods, easy to change when needed
Applications: composite research, metals treatment, high temperature fine ceramic research, powder metallurgy, nano-materials
Voltage input AC230V single or three phase as specified or requested
CE Certified (Optional ETL with extra cost)
One year limited manufacturer warranty

Model	Heating Watts	Chamber Volume	Chamber Dimensions	Overall Dimensions
MBF1400-V12	6000W	12L	30x20x20cm	75x90x100cm
MBF1400-V36	8000W	36L	40x30x30cm	90x95x120cm
MBF1400-V80	14KW	80L	50x40x40cm	100x110x140cm
