Meling Biomedical
YC-650L Medical Refrigerator
YC-650L Medical Refrigerator
- 650 L (22.95 cu. ft.)
- 2°C to 8°C
- Upright
UL/cUL listed for the United States and Canada. ENERGY STAR certified. CE marked.

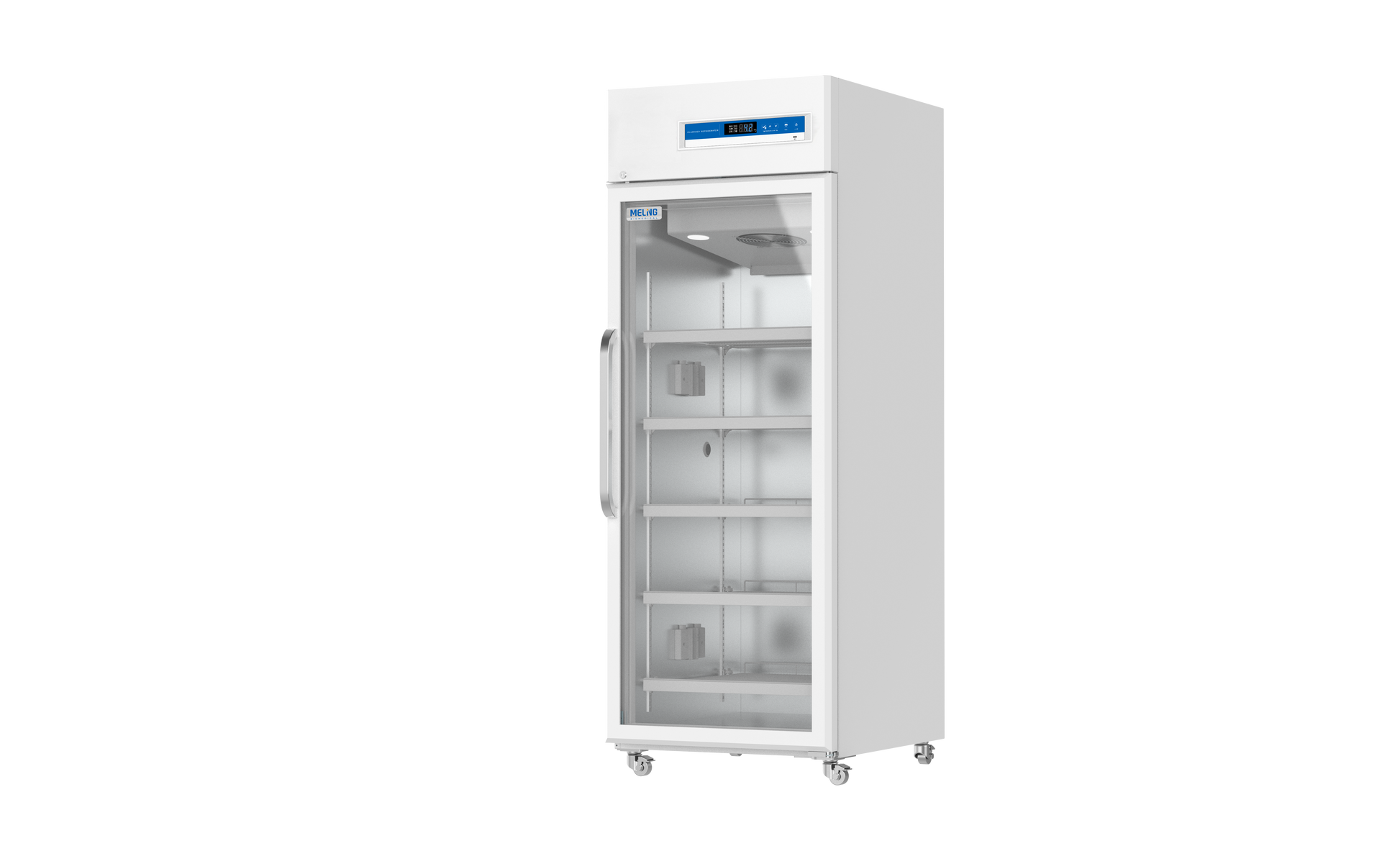

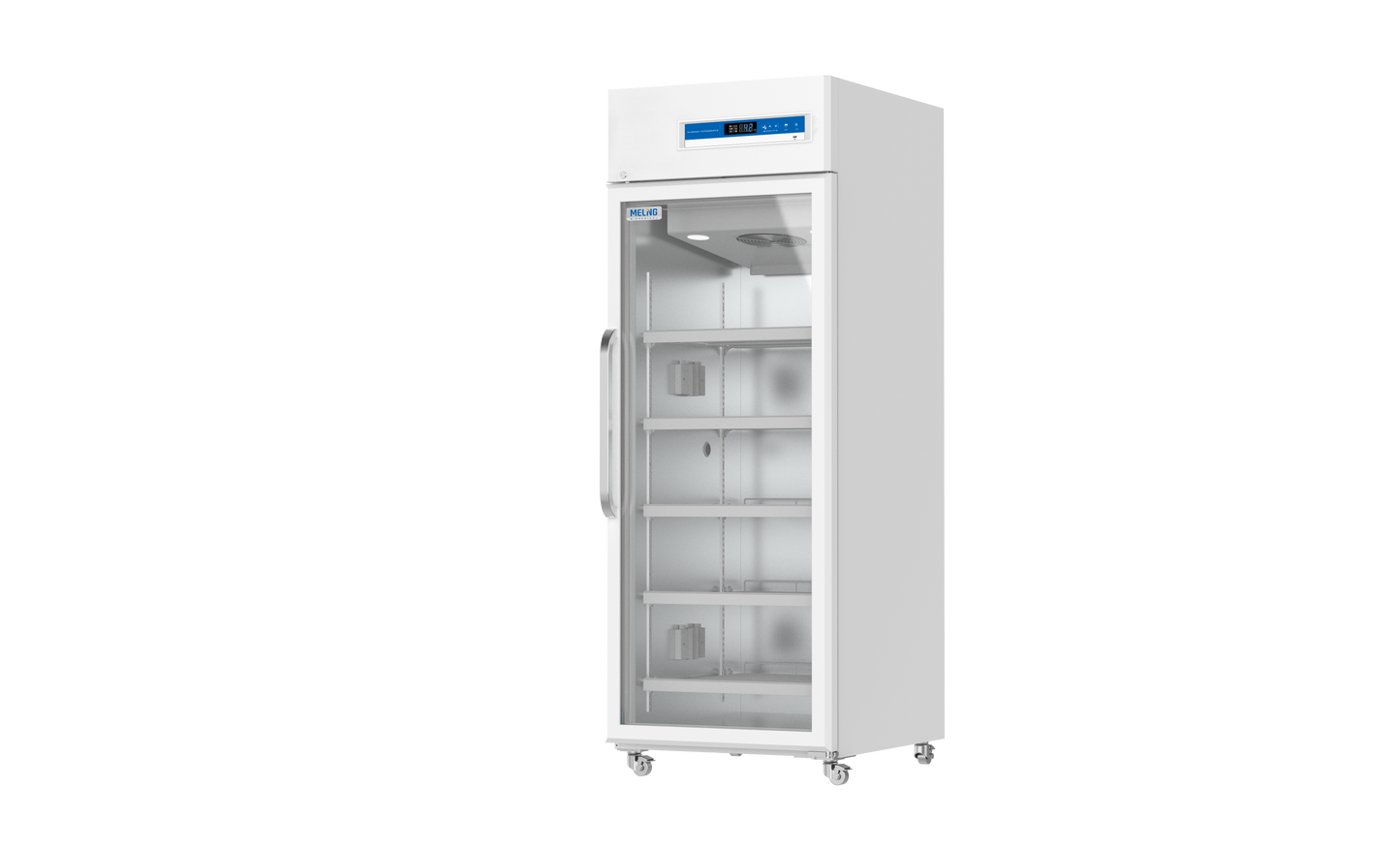

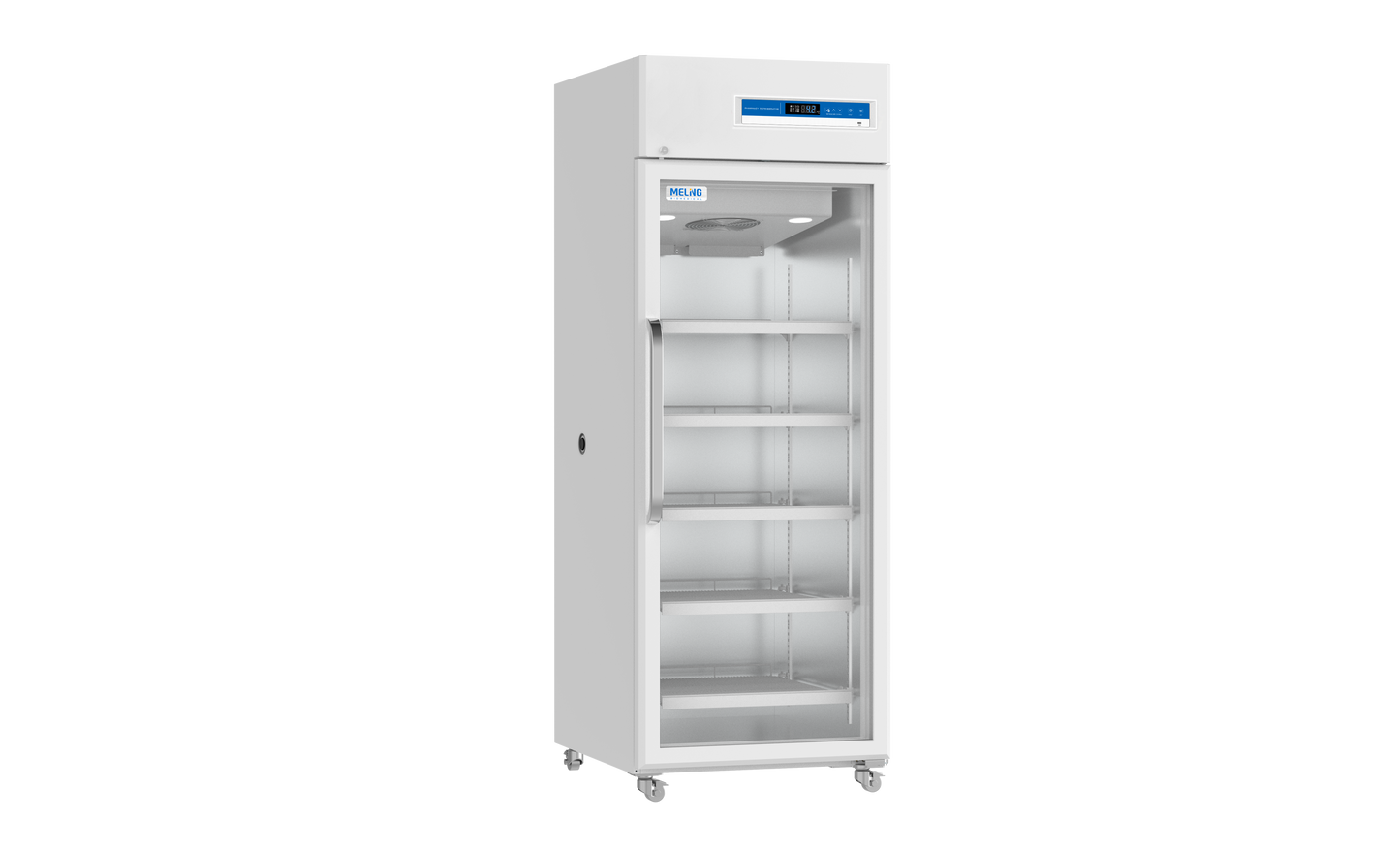

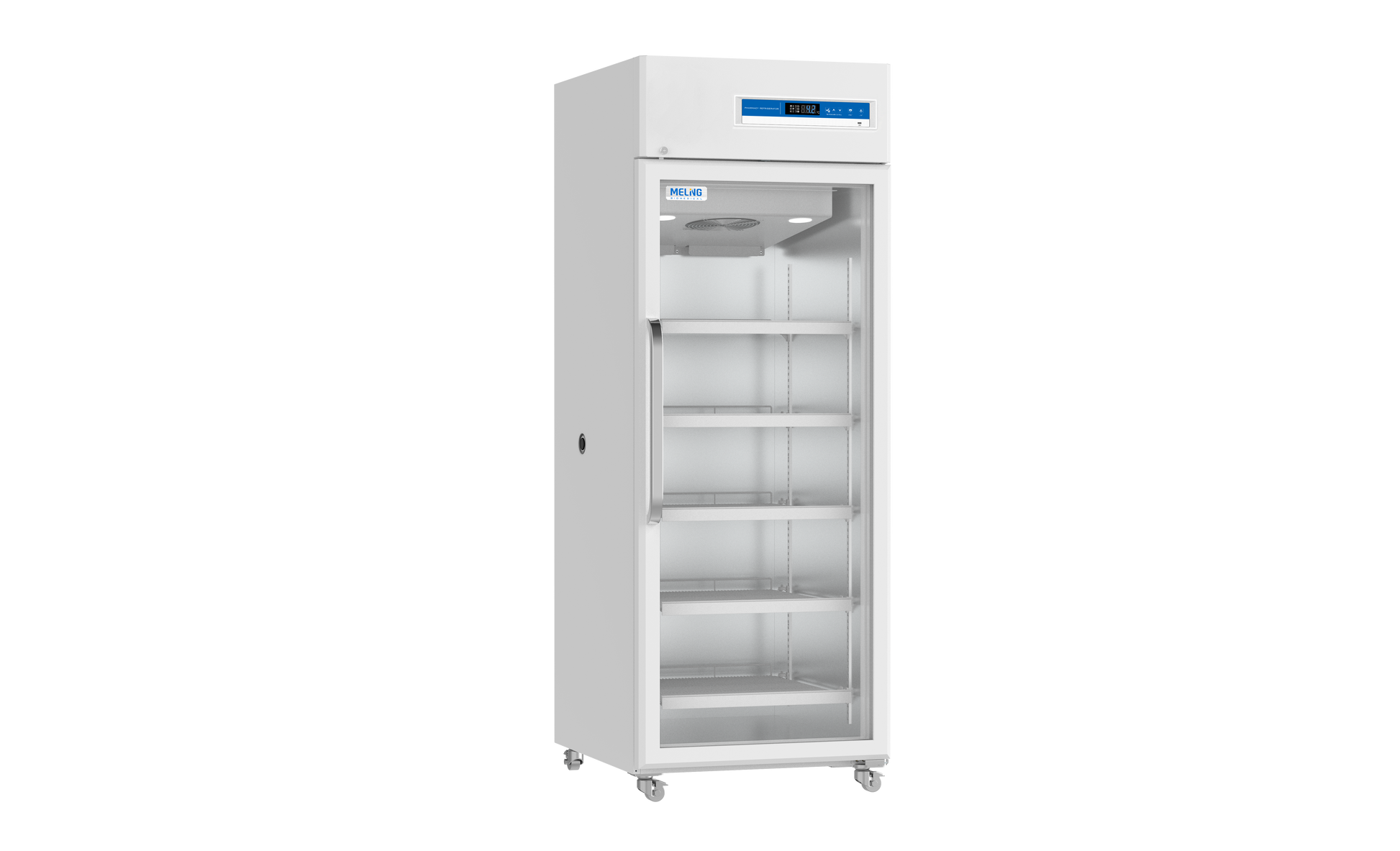

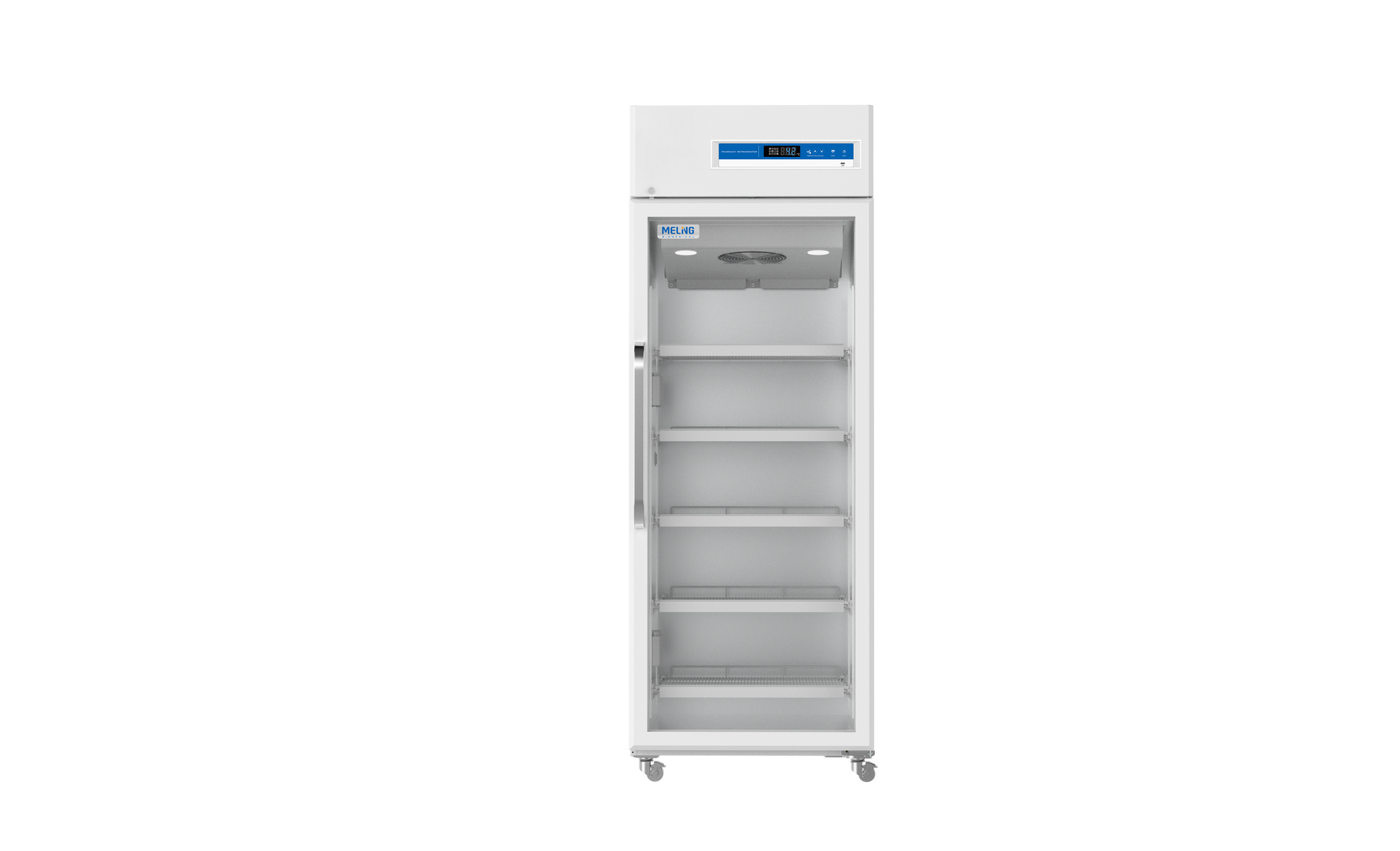

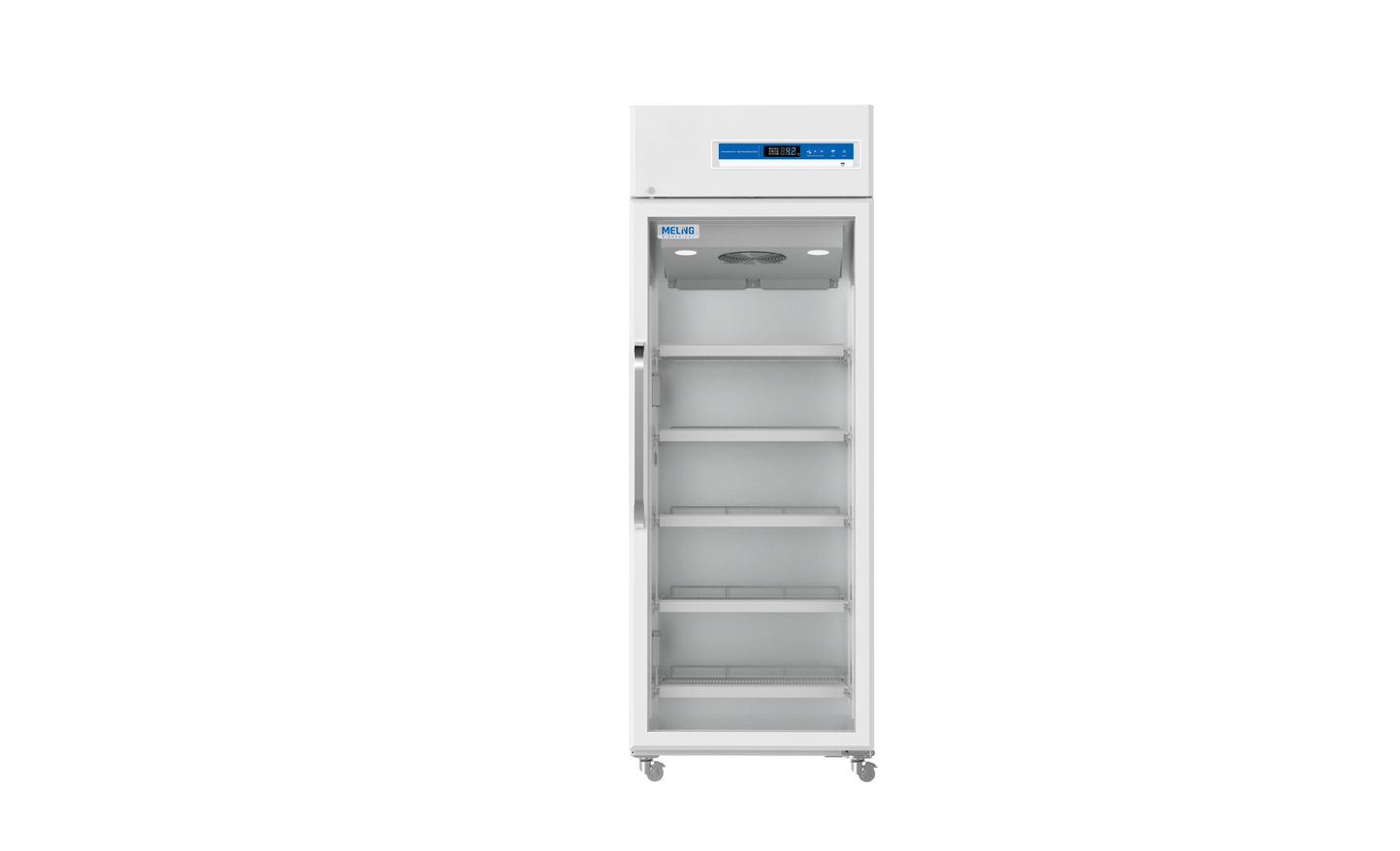

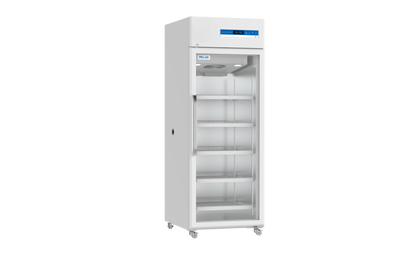

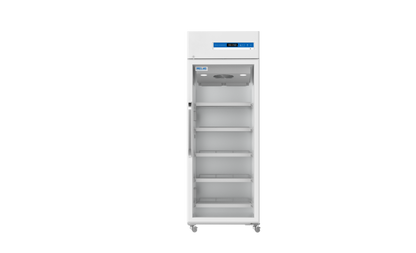

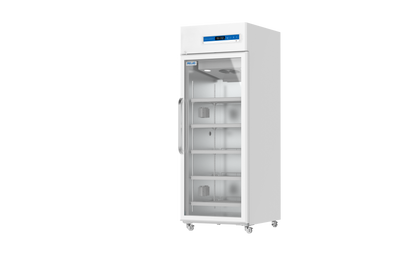

The Meling Biomedical YC-650L provides 650 L (22.95 cu. ft.) of refrigerated storage within an upright, single-door cabinet. Its microprocessor controller, air-cooling system, temperature logging, and multiple alarm functions support temperature-controlled storage in pharmacy and laboratory environments.

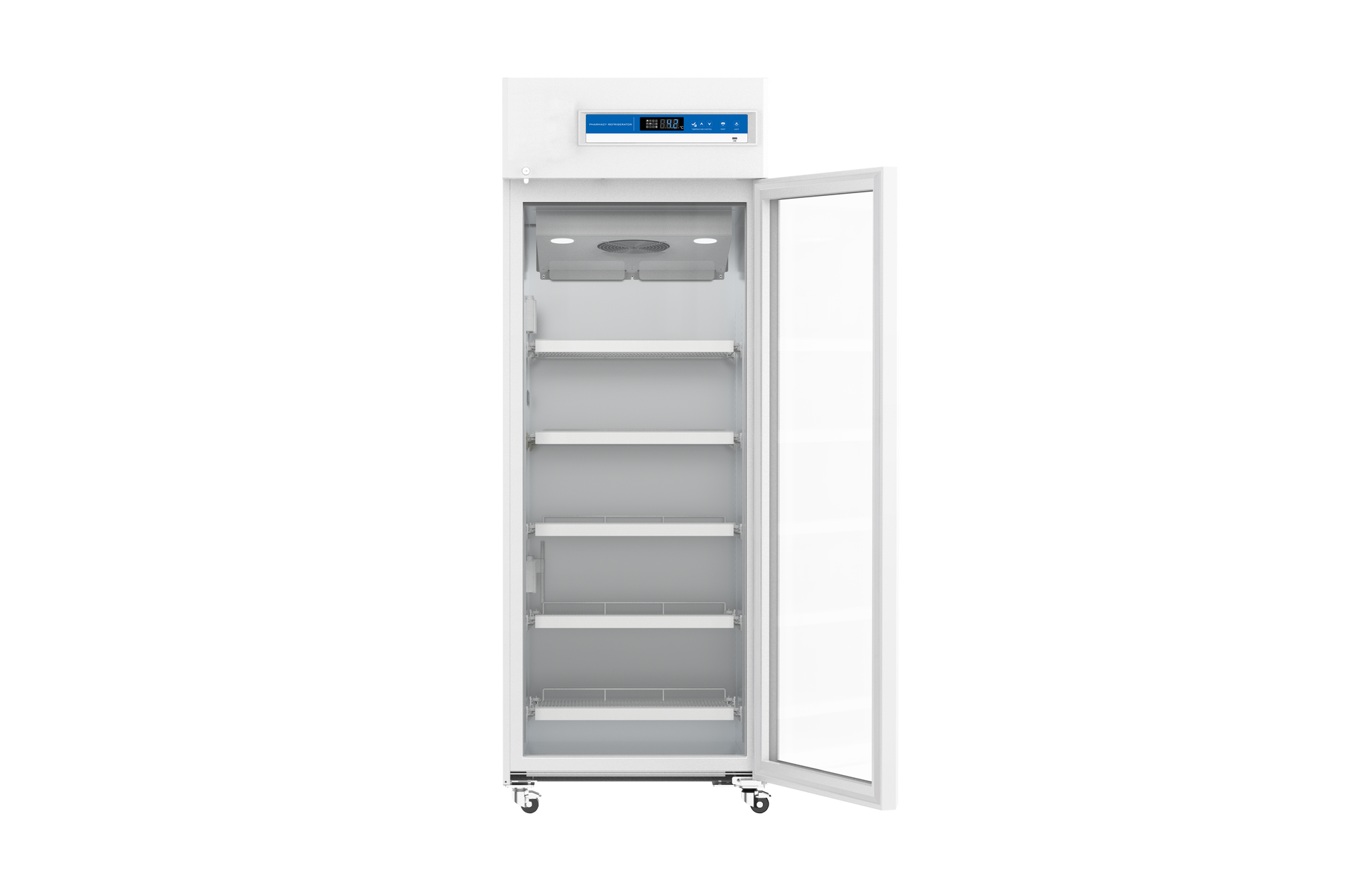

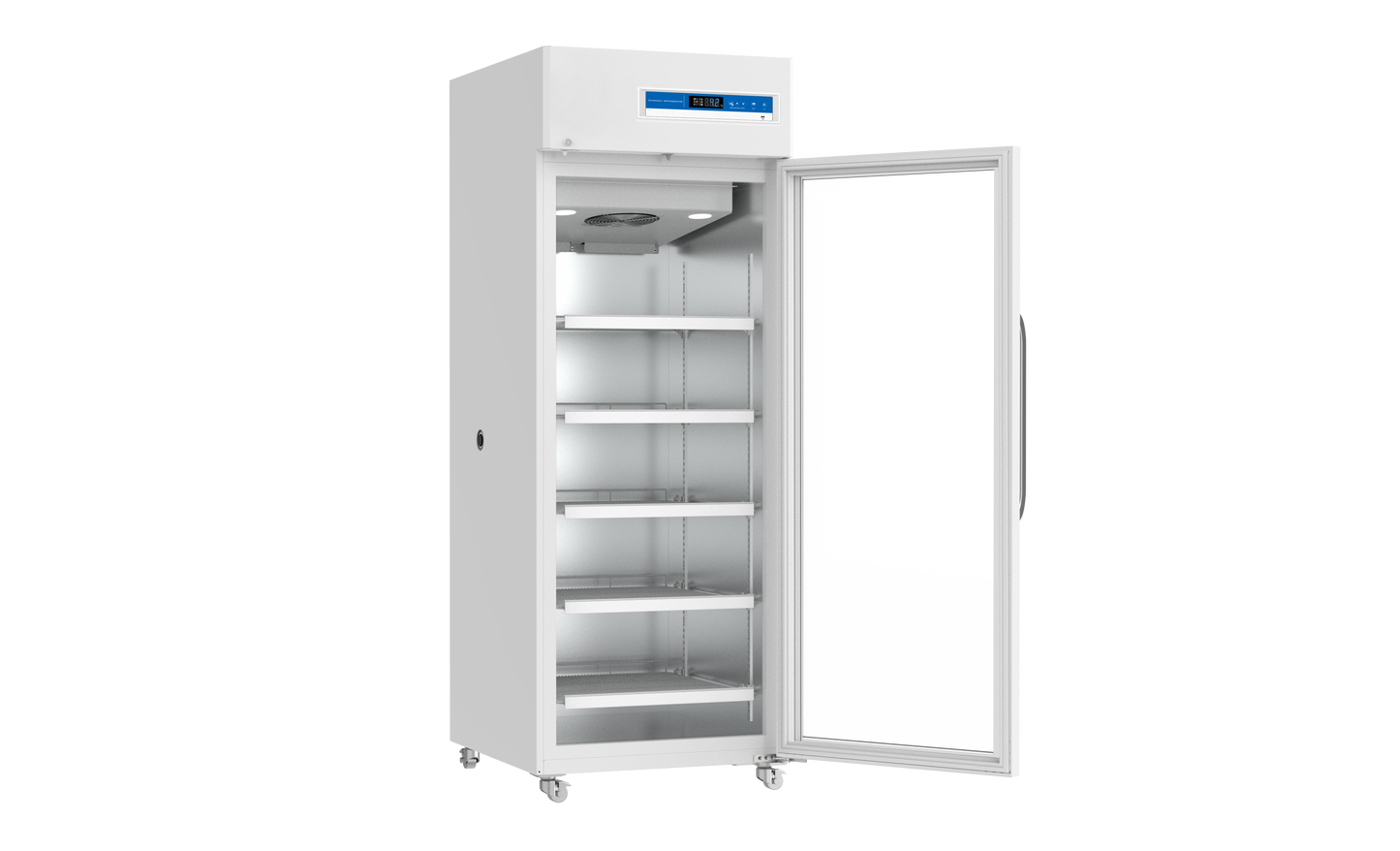

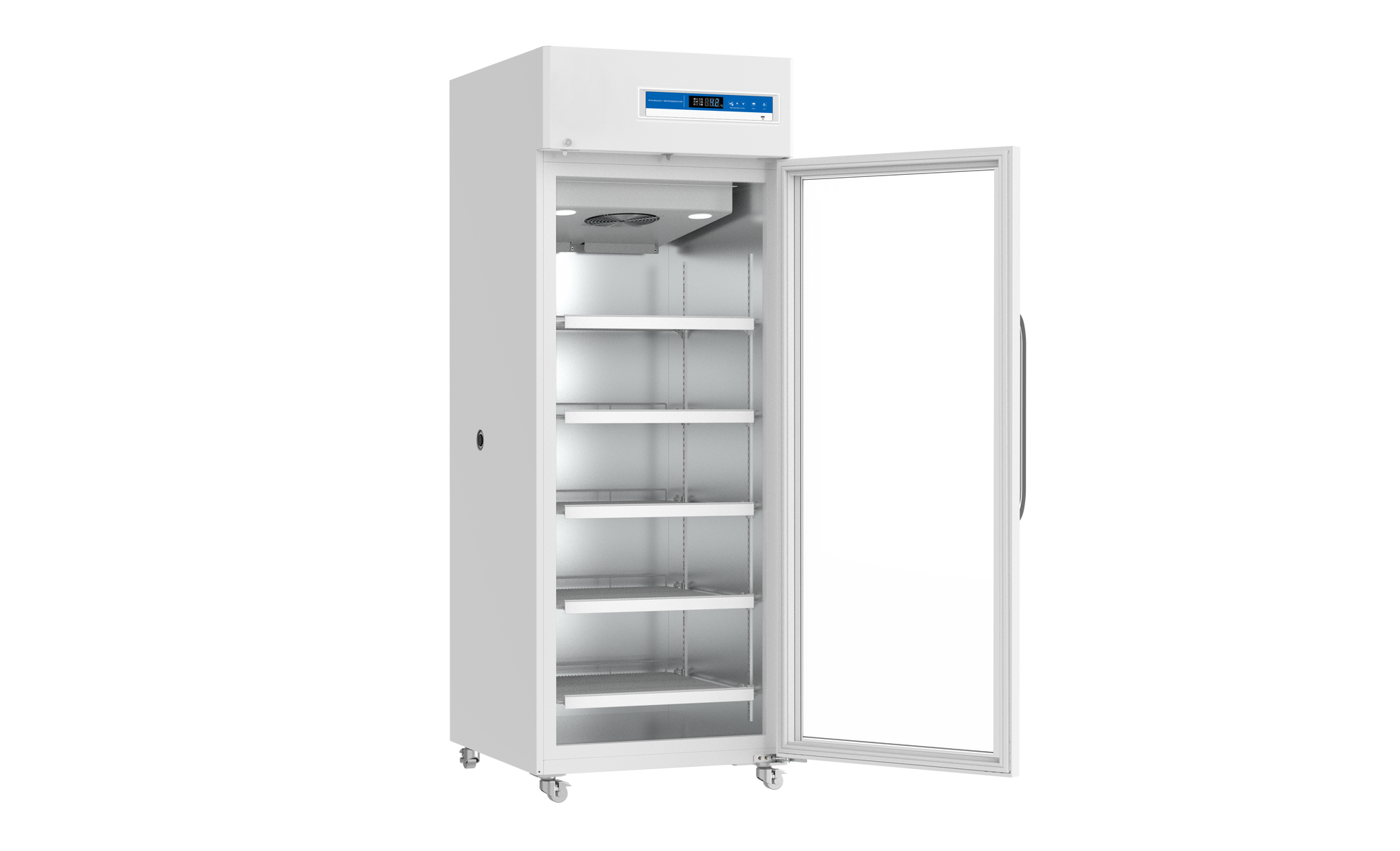

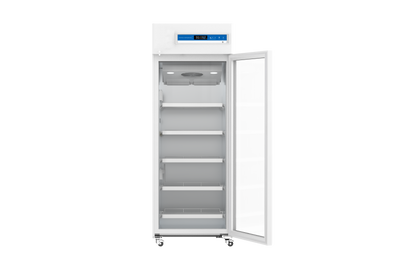

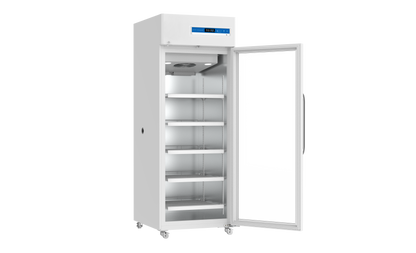

Five height-adjustable, plastic-coated steel wire shelves help organize stored materials. A stainless-steel interior, double-pane glass door, ergonomic handle, and four casters provide convenient storage access and cabinet mobility.
Certifications
- UL/cUL listed for the United States and Canada
- ENERGY STAR certified
- CE marked
Temperature Control and Refrigeration
The YC-650L operates within a 2°C to 8°C temperature range. Its microprocessor controller and digital display provide temperature monitoring, with readings displayed in 0.1°C increments. The refrigeration system uses air cooling, automatic defrosting, and R290 hydrocarbon refrigerant.
Typical performance figures are:
- Temperature uniformity: 2.0°C variation
- Pull-down time to 5°C: 0.4 hours, equivalent to 24 minutes
- Temperature recovery after a one-minute door opening: 0.1 hours, equivalent to 6 minutes
These figures are based on manufacturer internal testing at a 5°C set point and a 25°C ambient temperature.
Temperature Logging and Monitoring
The built-in data logger records temperature every 10 minutes and has a capacity of 100,000 data records. Recorded data can be exported through the USB port.
An RS485 interface and remote alarm contact provide additional connection options. The refrigerator also includes a backup battery and one 23 mm-diameter access port.
Alarm Functions
The YC-650L provides alarms for:
- High and low storage temperatures
- High ambient temperature
- High condenser temperature
- Power failure
- Low battery
- Sensor error
- Data communication failure
- Door ajar
- Data logger failure
Cabinet Features
- Five height-adjustable, plastic-coated steel wire shelves
- Stainless-steel interior
- Double-pane glass door
- Ergonomic door handle
- Circuit breaker for electrical protection
- Four casters, including two with brakes
Electrical Specifications
The manufacturer’s brochure lists the following paired power supply and rated current values:
| Power supply (V/Hz) | Rated current (A) |
|---|---|
| 110 V / 60 Hz | 5.77 A |
| 220–240 V / 50/60 Hz | 3.06 A |
Main Specifications
| Specification | YC-650L |
|---|---|
| Capacity | 650 L / 22.95 cu. ft. |
| Temperature range | 2°C to 8°C |
| Ambient temperature range | 16°C to 32°C |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital, with 0.1°C display increments |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Number of compressors | 1 |
| Refrigerant | R290 |
| Exterior material | PCM |
| Interior material | Stainless steel |
| External dimensions, W × D × H | 715 × 890 × 1,985 mm |
| Internal dimensions, W × D × H | 605 × 725 × 1,515 mm |
| Package dimensions, W × D × H | 773 × 947 × 2,154 mm |
| Net weight | 157 kg |
| Gross weight | 185 kg |
| Shelves | 5, height-adjustable |
| Access port | 1, diameter 23 mm |
| Mobility | 4 casters, including 2 with brakes |
| Temperature recording interval | Every 10 minutes |
| Data logging capacity | 100,000 records |
| Data export | USB |
| Interfaces | RS485 and remote alarm contact |
| Backup battery | Included |
| Certifications and markings | UL/cUL listed; ENERGY STAR certified; CE marked |
