Meling Biomedical
YC-395L Pharmacy Refrigerator
YC-395L Pharmacy Refrigerator
- 395 L (13.95 cu. ft.)
- 2°C to 8°C
- Upright
UL/cUL listed for the United States and Canada. CE marked.

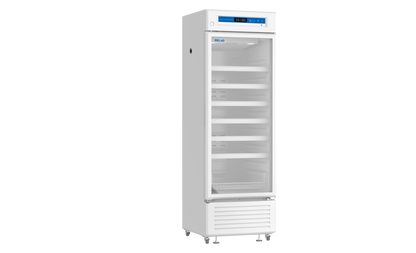

The Meling Biomedical YC-395L provides 395 L (13.95 cu. ft.) of refrigerated storage within an upright, single-door cabinet. Its seven-sensor design, microprocessor controller, air-cooling system, temperature logging, and multiple alarm functions support temperature-controlled storage in pharmacy and laboratory environments.

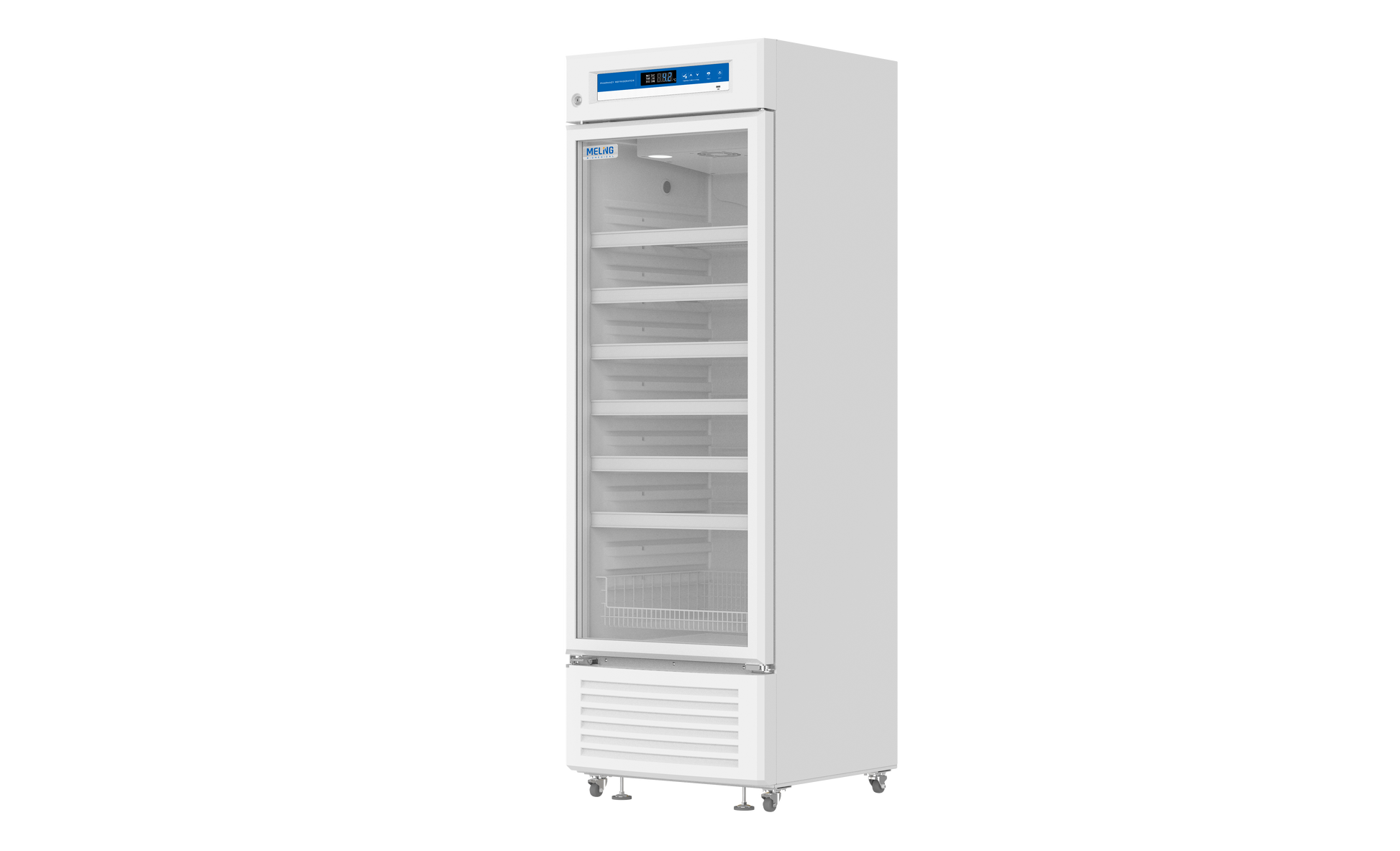

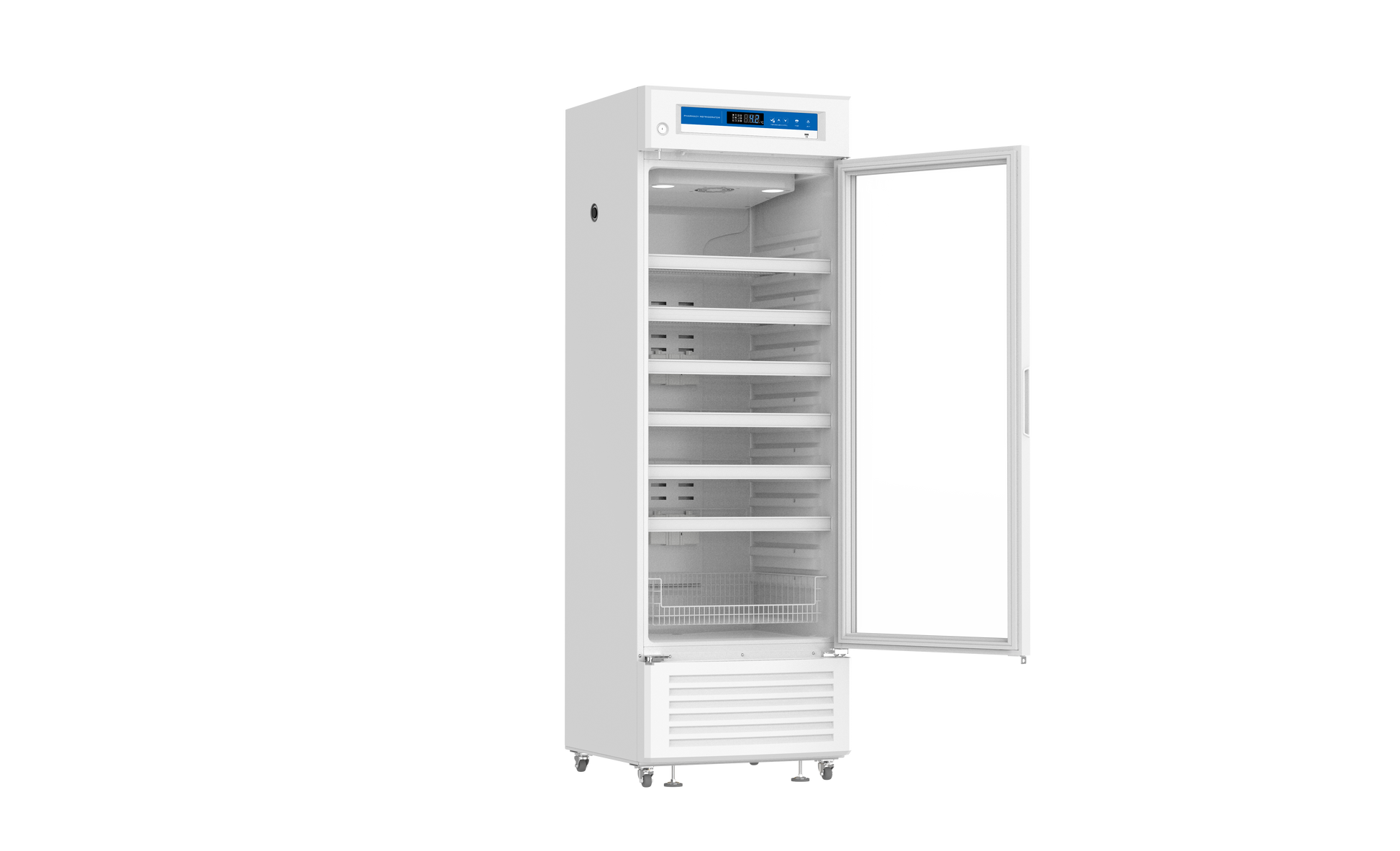

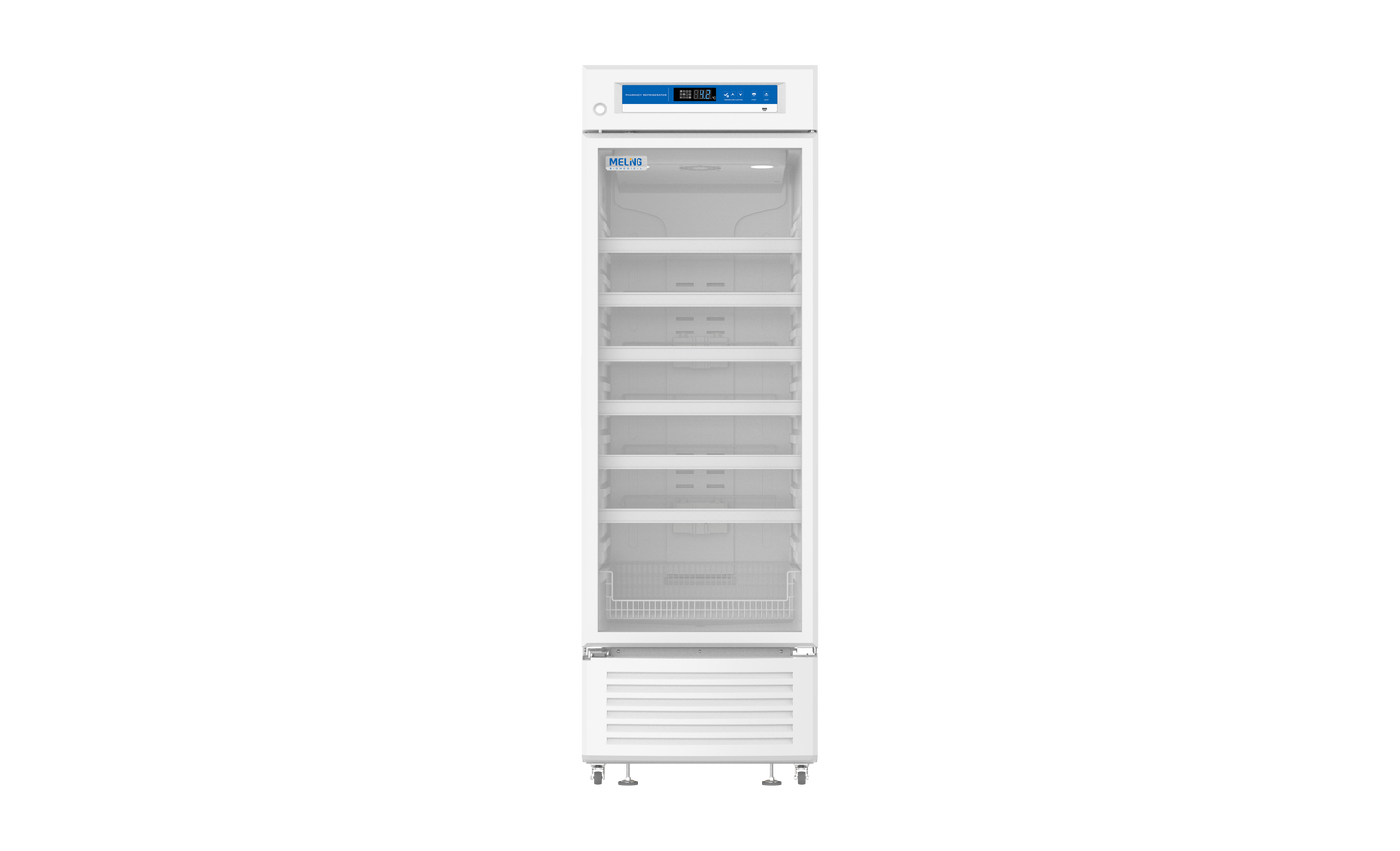

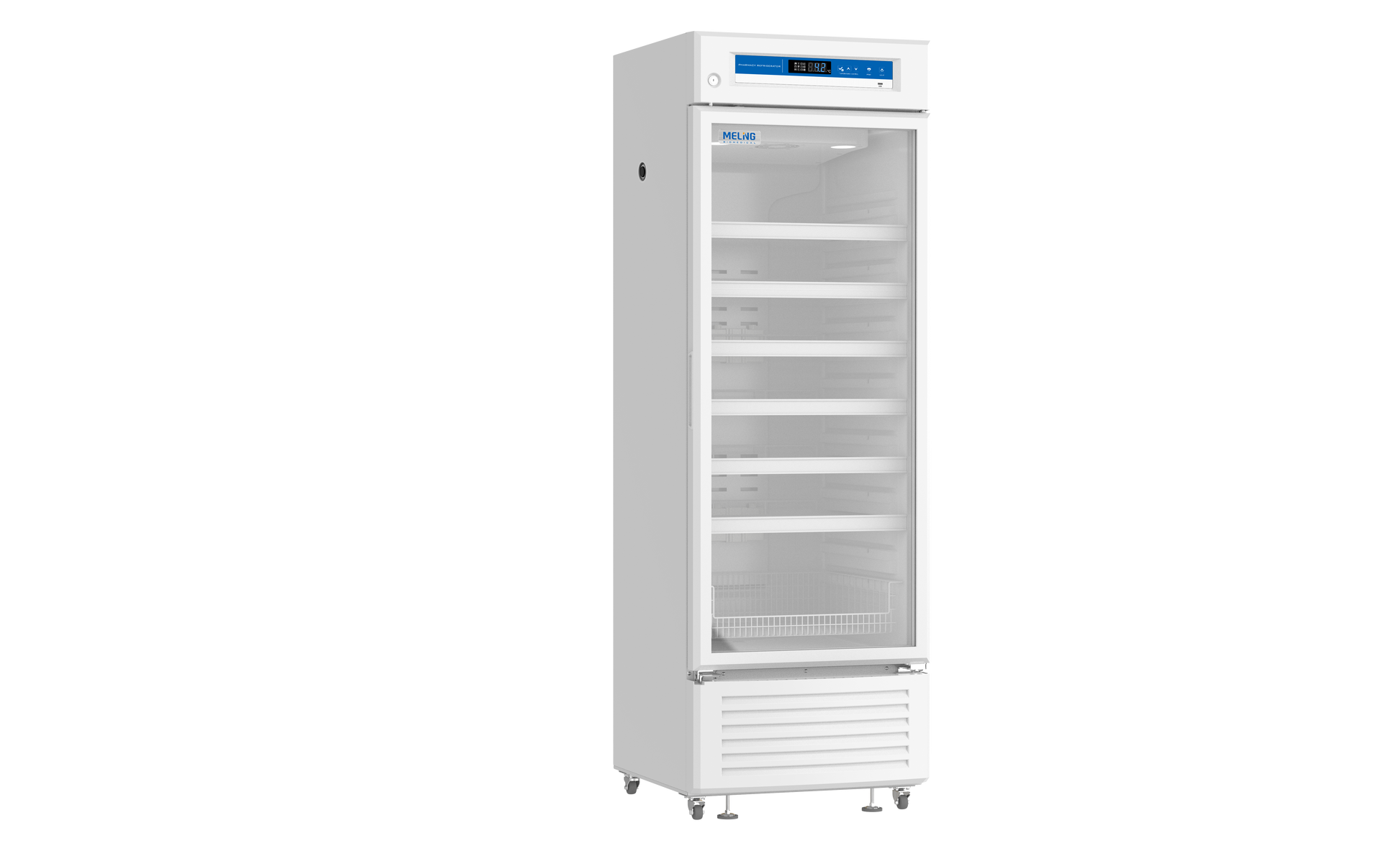

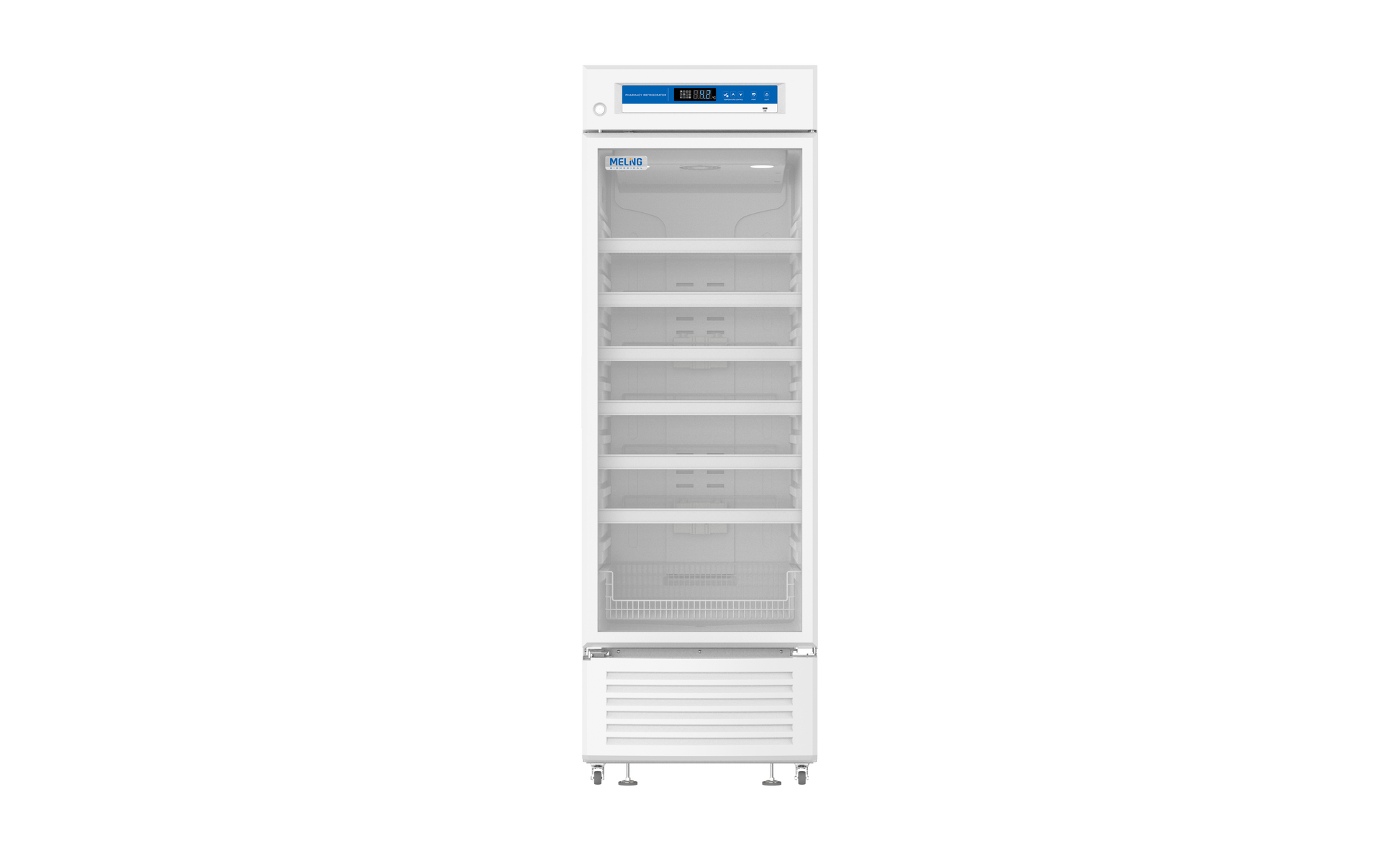

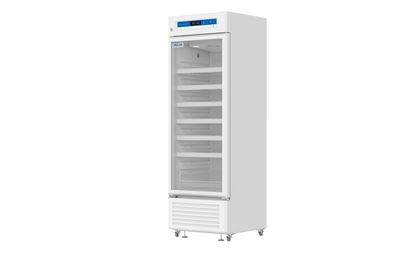

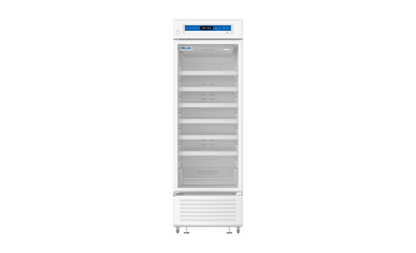

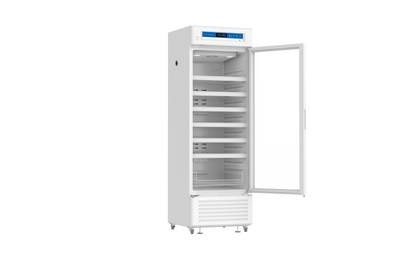

Seven removable plastic-coated steel wire shelves with label holders help organize stored materials, while a double-pane glass door provides visibility into the storage compartment.
Certifications
- UL/cUL listed for the United States and Canada
- CE marked
Temperature Control and Refrigeration
The YC-395L operates within a 2°C to 8°C temperature range. Its microprocessor controller and digital display provide temperature monitoring, with readings displayed in 0.1°C increments. The refrigeration system uses air cooling, automatic defrosting, and R290 refrigerant.
Manufacturer internal testing reports the following typical performance:
- Temperature uniformity: 1.4°C
- Pull-down time to 5°C: 0.9 hours, equivalent to 54 minutes
- Temperature recovery after a one-minute door opening: 0.3 hours, equivalent to 18 minutes
These figures are typical results from internal testing at a 5°C set point and a 22°C ambient temperature.
Temperature Logging and Monitoring
The built-in data logger records temperature every 10 minutes and supports USB export of up to 12 months of data. An RS485 interface and remote alarm contact provide additional connection options.
The refrigerator also includes a backup battery and one 23 mm-diameter access port.
Alarm Functions
The YC-395L provides alarms for:
- High and low storage temperatures
- High ambient temperature
- High condenser temperature
- Power failure
- Low battery
- Sensor error
- Data communication failure
- Door ajar
- Data logger failure
Cabinet Features
- Double-pane glass door with automatic electric heating
- Concealed door handle
- Padlock provision for door security
- Seven removable plastic-coated steel wire shelves with label holders
- HIPS interior
- Circuit breaker for electrical protection
- Four heavy-duty casters and two levelling feet
Electrical Specifications
The manufacturer’s brochure lists the following paired power supply and rated current values:
| Power supply (V/Hz) | Rated current (A) |
|---|---|
| 110 V / 60 Hz | 4.76 A |
| 220–240 V / 50/60 Hz | 1.39 A |
Main Specifications
| Specification | YC-395L |
|---|---|
| Capacity | 395 L / 13.95 cu. ft. |
| Temperature range | 2°C to 8°C |
| Ambient temperature range | 16°C to 32°C |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital, with 0.1°C display increments |
| Sensor count | 7 |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Number of compressors | 1 |
| Refrigerant | R290 |
| Exterior material | PCM |
| Interior material | HIPS |
| External dimensions, W × D × H | 650 × 673 × 1,992 mm |
| Internal dimensions, W × D × H | 580 × 533 × 1,352 mm |
| Package dimensions, W × D × H | 717 × 732 × 2,065 mm |
| Net weight | 95 kg |
| Gross weight | 108 kg |
| Shelves | 7 |
| Access port | 1, diameter 23 mm |
| Mobility | 4 casters and 2 levelling feet |
| Temperature recording interval | Every 10 minutes |
| Data export | Up to 12 months of data via USB |
| Interfaces | RS485 and remote alarm contact |
| Backup battery | Included |
| Certifications and markings | UL/cUL listed; CE marked |
