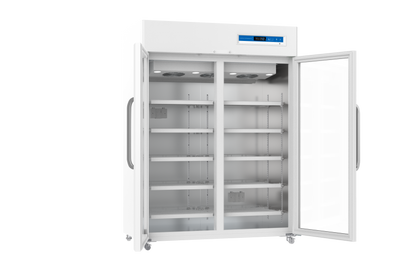

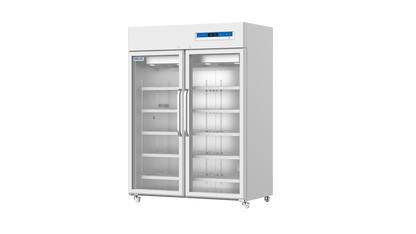

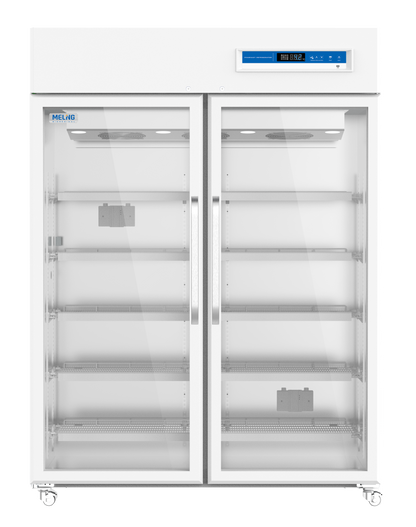

Meling Biomedical YC-1320L 2–8°C Double-Door Pharmacy Refrigerator 1,320 L

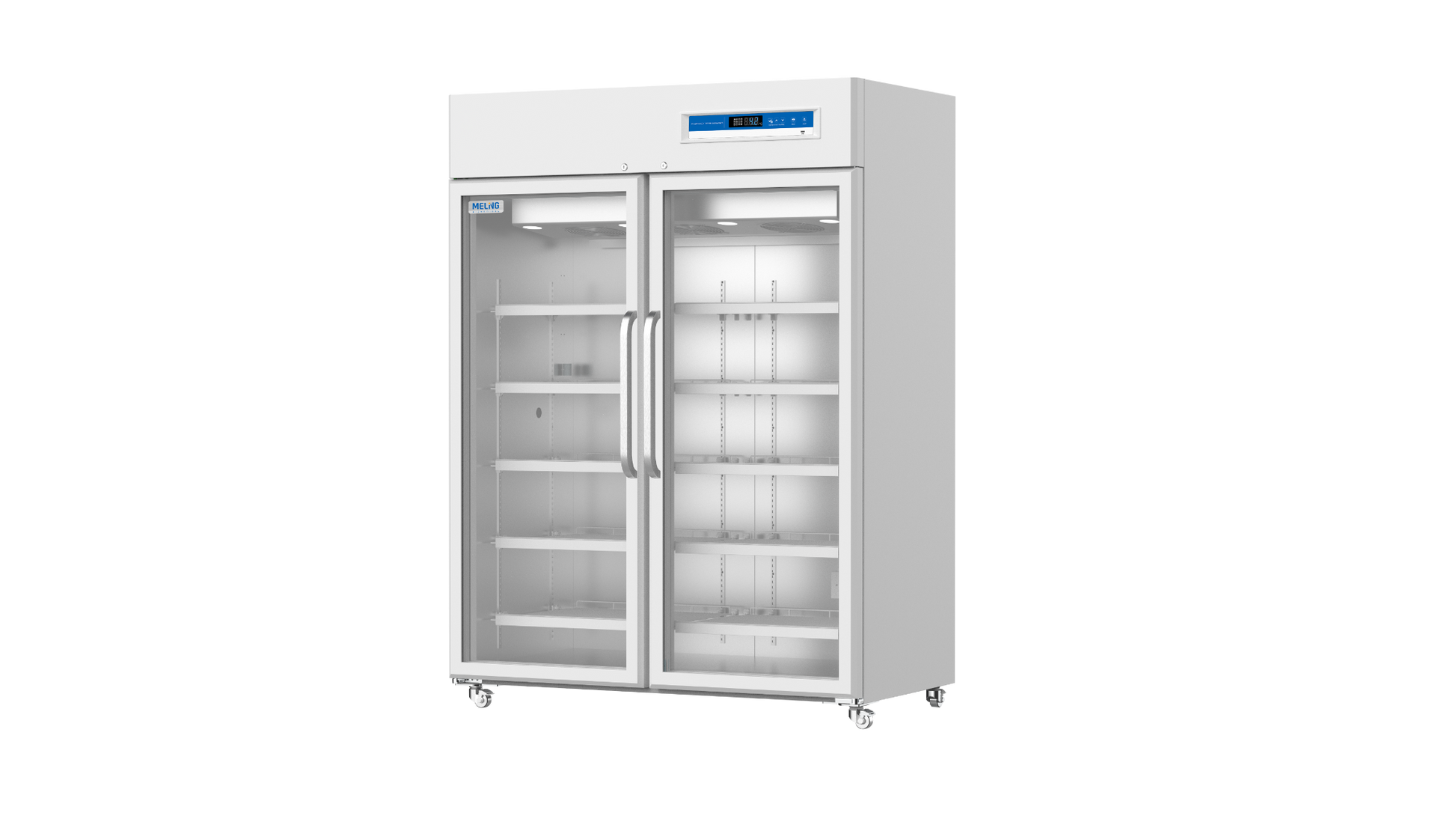

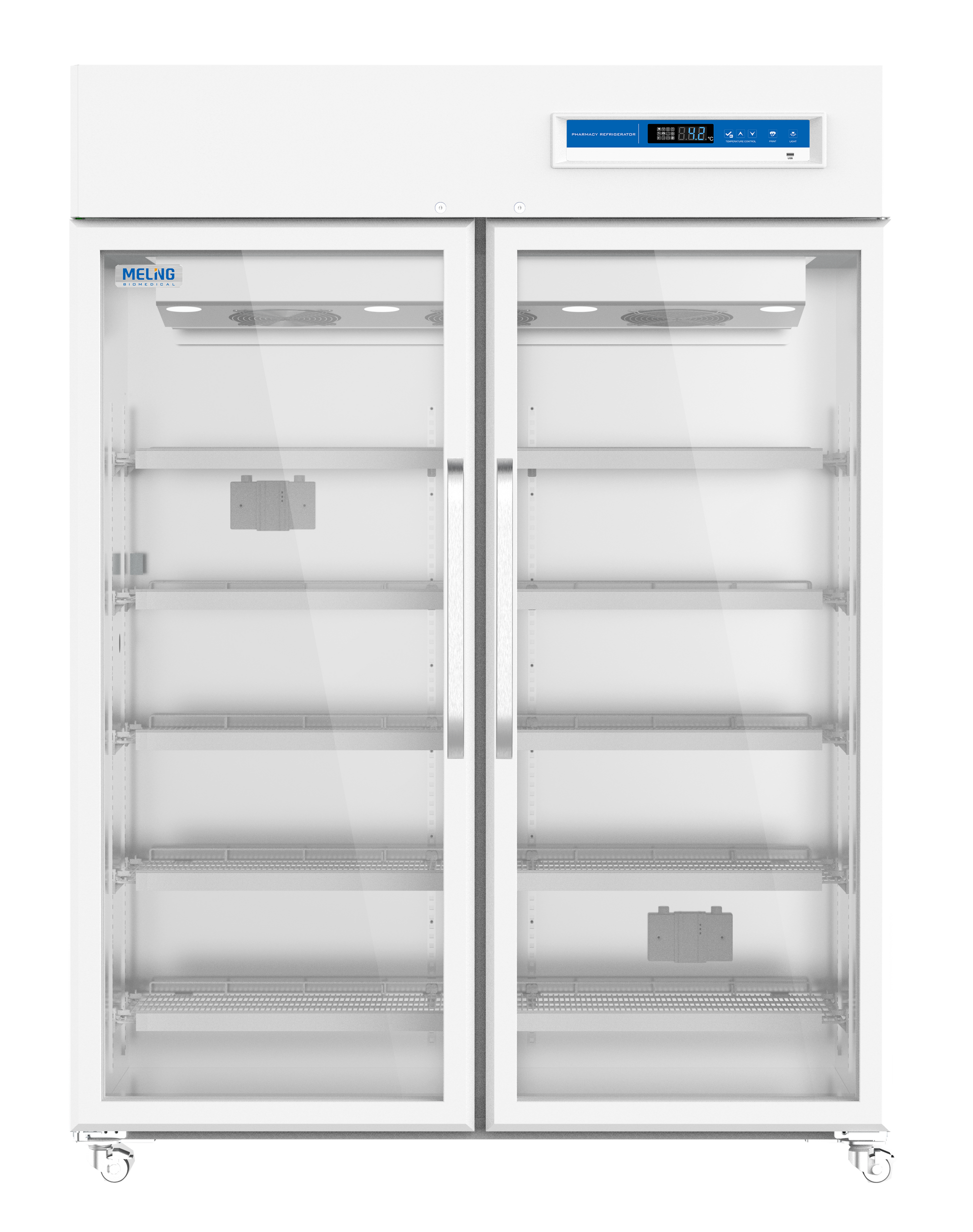

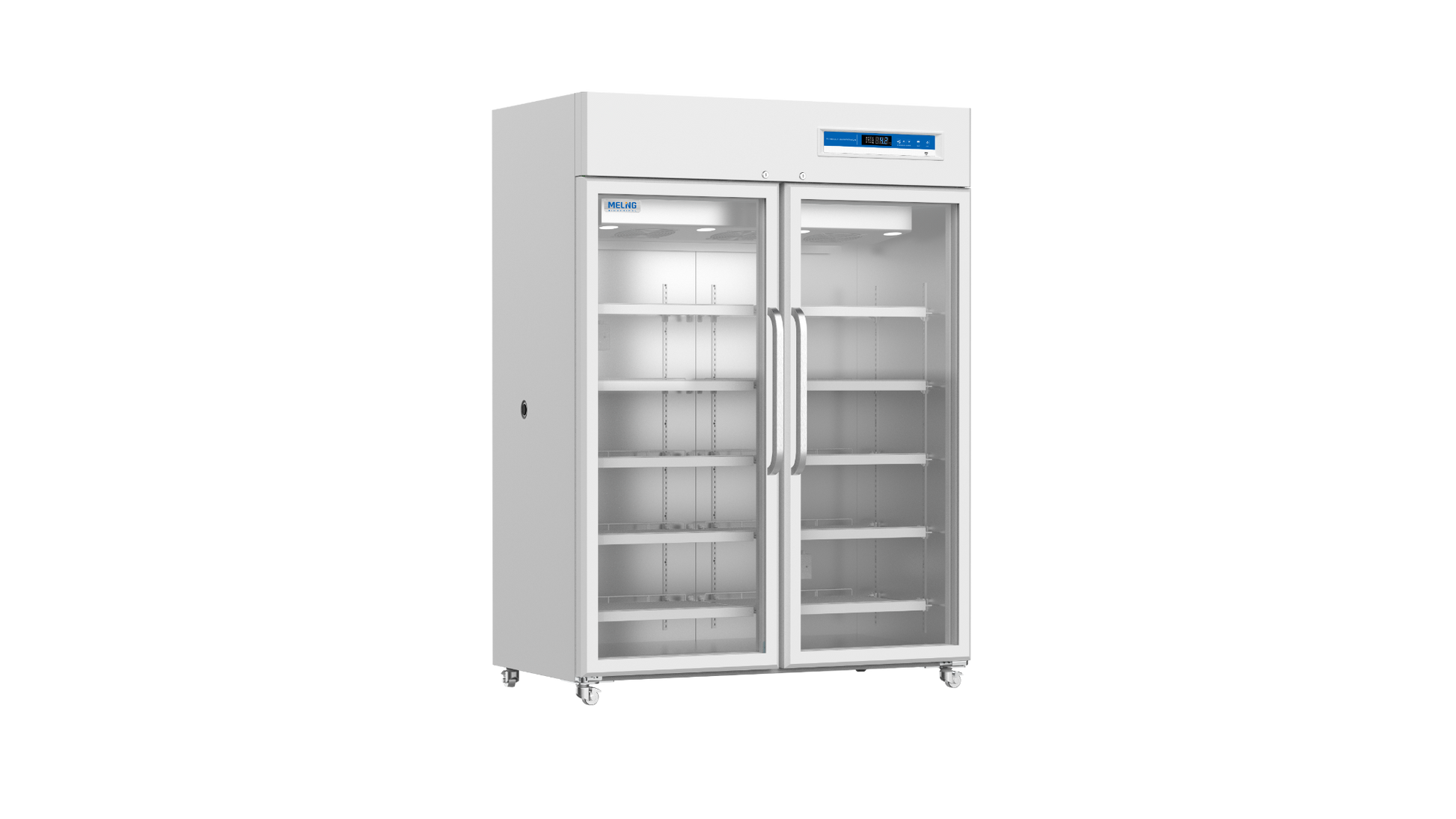

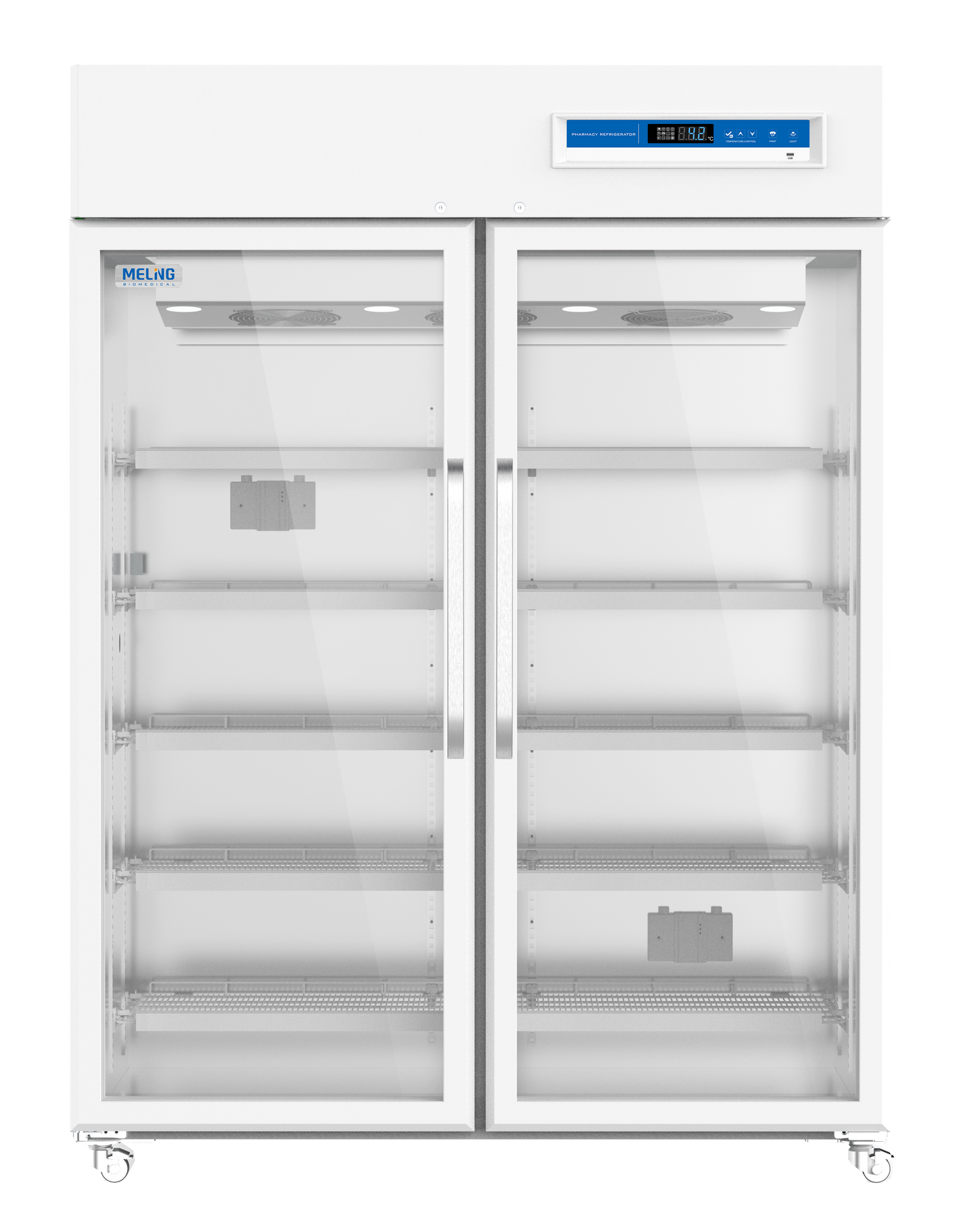

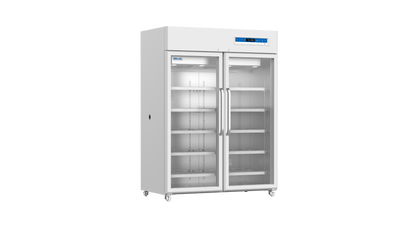

Meling Biomedical YC-1320L 2–8°C Double-Door Pharmacy Refrigerator

The Meling Biomedical YC-1320L is a high-capacity pharmacy refrigerator designed for the controlled storage of vaccines, pharmaceuticals, reagents, biological materials, and other temperature-sensitive products. Its 1,320 L interior, ten adjustable shelves, and double-door configuration provide organized storage and convenient access for hospitals, pharmacies, laboratories, clinics, research institutions, and other professional facilities.

Certifications

• UL certified for applicable United States safety requirements

• cUL certified for applicable Canadian safety requirements

• CE marked for conformity with applicable European requirements

A microprocessor-based control system maintains an operating temperature range of 2°C to 8°C. The digital display supports temperature adjustments in 0.1°C increments, while forced-air cooling and seven temperature sensors help maintain consistent conditions throughout the storage chamber. Automatic defrosting supports dependable operation with reduced routine maintenance.

Key Features

• 1,320 L high-capacity storage chamber

• 2°C to 8°C operating temperature range

• Double-door upright configuration

• Microprocessor temperature controller

• Digital display with 0.1°C adjustment increments

• Seven temperature sensors for enhanced monitoring

• Forced-air cooling for improved temperature distribution

• Automatic defrost system

• Ten adjustable, plastic-coated steel wire shelves

• Durable stainless-steel interior

• Double-pane glass doors

• Automatic electric door heating to help reduce condensation

• Ergonomic door handles

• Keyed door locks

• Built-in local USB data logger

• Temperature recording every 10 minutes

• Up to 12 months of locally stored temperature records

• Local RS485 communication interface

• Remote alarm contact for compatible on-site systems

• Backup battery for continued local monitoring during power interruptions

• 23 mm access port for external probes

• Four casters, including two locking casters

• Circuit breaker for electrical protection

• Environmentally responsible R290 hydrocarbon refrigerant

Temperature Performance

The forced-air cooling system and seven-sensor monitoring design help maintain stable temperatures throughout the large storage chamber. Manufacturer internal testing reports:

• Temperature uniformity of approximately 1.5°C

• Temperature stability of approximately 2.2°C

• Temperature recovery within approximately 5 minutes after the door is opened for one minute

These figures are based on internal testing at a 5°C set point and a 25°C ambient temperature. Actual performance may vary depending on cabinet loading, installation conditions, ambient temperature, and frequency of door openings.

Comprehensive Alarm Protection

The YC-1320L includes audible and visual alarms designed to notify users of abnormal operating conditions. Alarm functions include:

• High and low cabinet temperatures

• High ambient temperature

• High condenser temperature

• Power failure

• Low backup battery level

• Temperature sensor error

• Door-ajar condition

• Local data communication failure

• Data logger failure

Local Temperature Data Management

The integrated data logger records cabinet temperature every 10 minutes and can retain up to 12 months of records. Authorized users can export stored temperature data directly through the USB port for documentation, audits, and local recordkeeping.

The RS485 interface and remote alarm contact can support compatible on-site monitoring or building-management systems without requiring an internet connection.

Privacy-Focused Offline Operation

Online connectivity and external-server data collection are disabled to support institutional privacy, cybersecurity, and data-governance requirements. Temperature records remain stored locally and can be accessed and exported directly through the built-in USB data logger.

Designed for High-Volume Storage

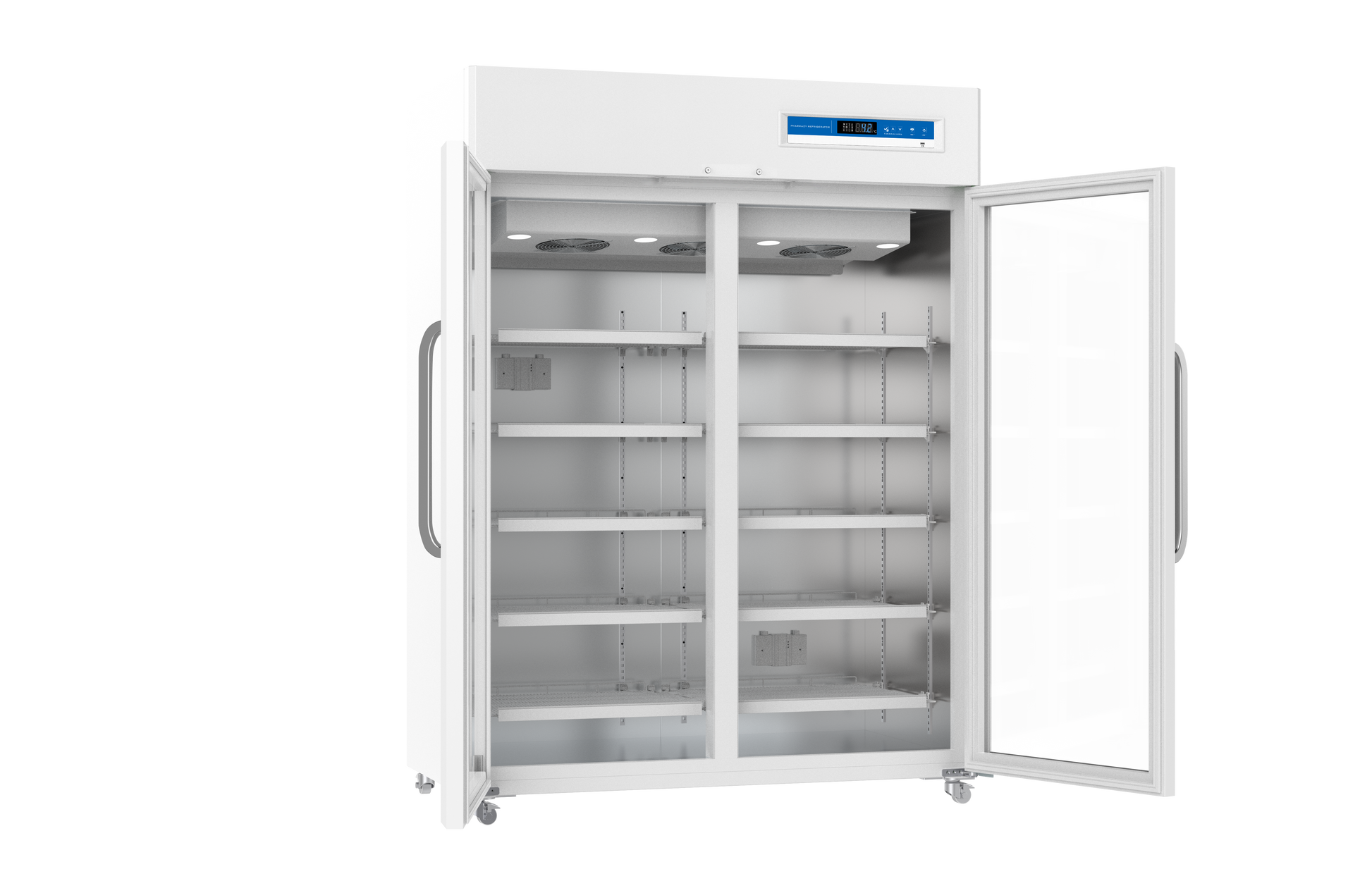

The large double-door cabinet provides substantial storage capacity while allowing users to access one side without fully opening the entire refrigerator. Ten adjustable shelves, a stainless-steel interior, glass doors, and a mobile caster base make the YC-1320L suitable for facilities that require organized, high-volume storage and dependable local monitoring.

Main Specifications

• Model: YC-1320L

• Capacity: 1,320 L

• Temperature range: 2°C to 8°C

• Recommended ambient temperature: 16°C to 32°C

• External dimensions (W × D × H): 1,453 × 826 × 1,998 mm

• Internal dimensions (W × D × H): 1,340 × 670 × 1,515 mm

• Package dimensions (W × D × H): 1,588 × 991 × 2,179 mm

• Net weight: 258 kg

• Gross weight: 350 kg

• Exterior material: Pre-coated metal

• Interior material: Stainless steel

• Refrigerant: R290

• Shelves: 10

• Access port: 23 mm diameter

• Casters: 4, including 2 locking casters

• Data recording: Every 10 minutes, with up to 12 months of local storage

• Data management: Local USB export; cloud connectivity disabled

• North American power supply: 110 V, 60 Hz

• Rated current at 110 V: 10.55 A
