Meling Biomedical

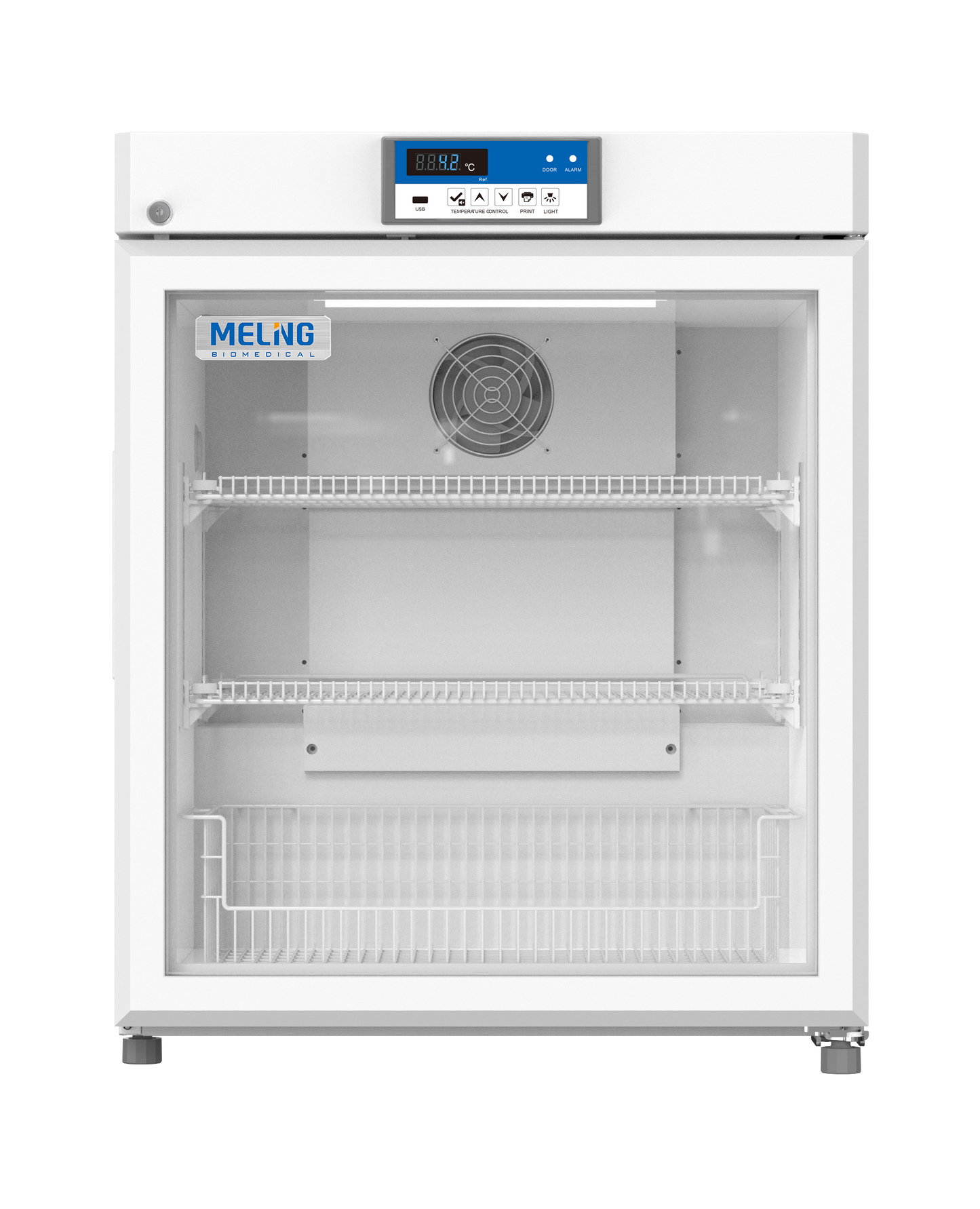

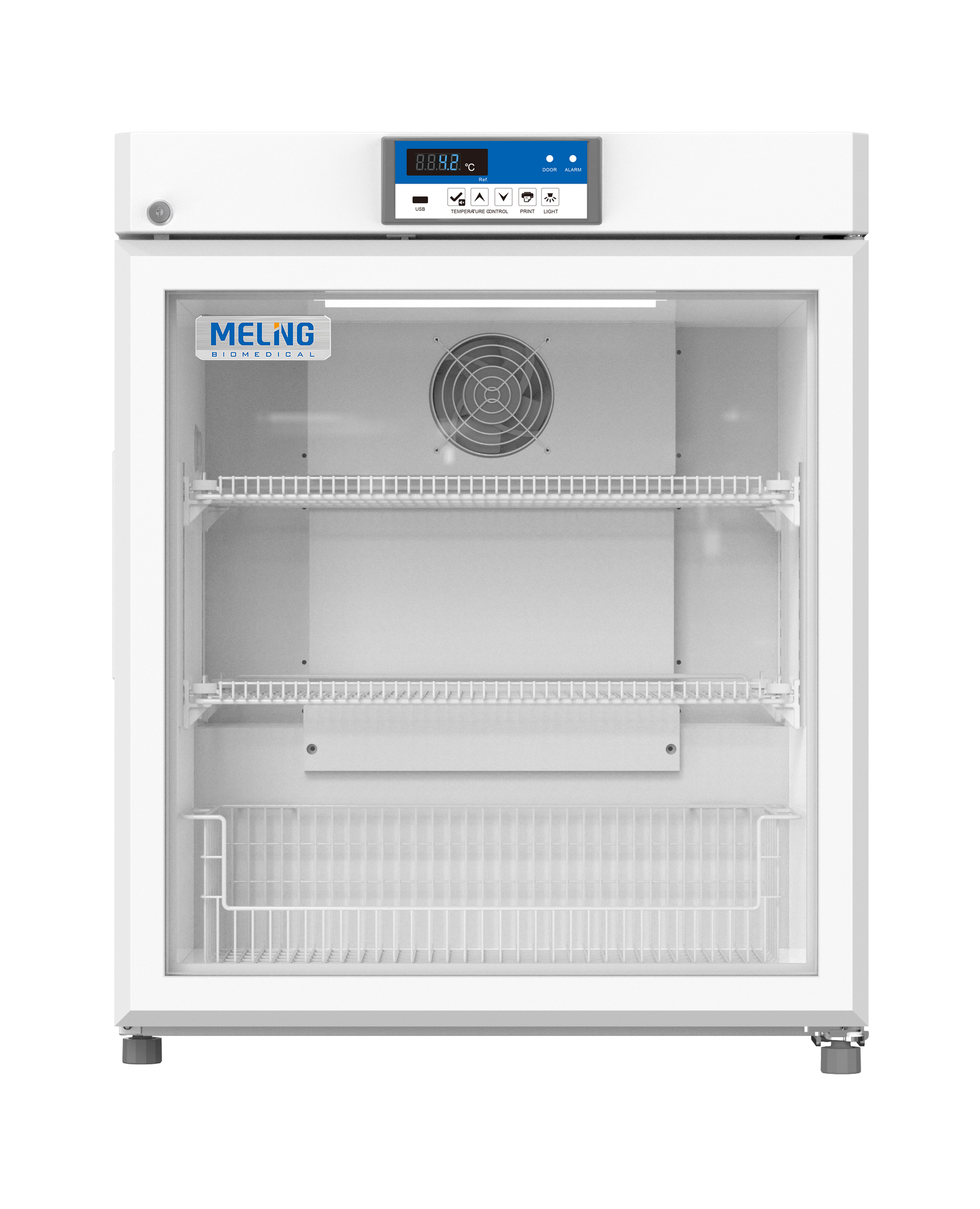

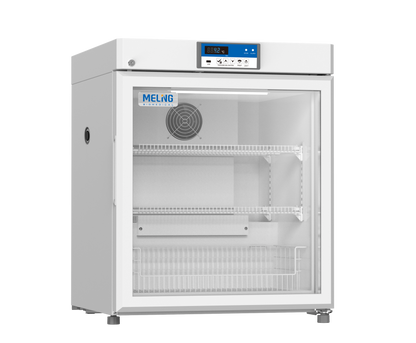

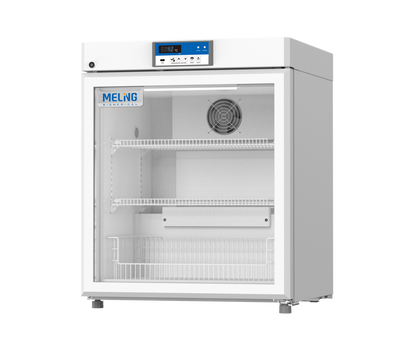

YC-130L Medical Refrigerator
YC-130L Medical Refrigerator
- 130 L (4.59 cu. ft.)
- 2°C to 8°C
- Undercounter
UL/cUL listed for the United States and Canada.
The Meling Biomedical YC-130L provides 130 L (4.59 cu. ft.) of refrigerated storage within a compact undercounter cabinet. Its 2°C to 8°C temperature range, microprocessor controller, temperature logging, and multiple alarm functions support temperature-controlled storage in pharmacy and laboratory environments.

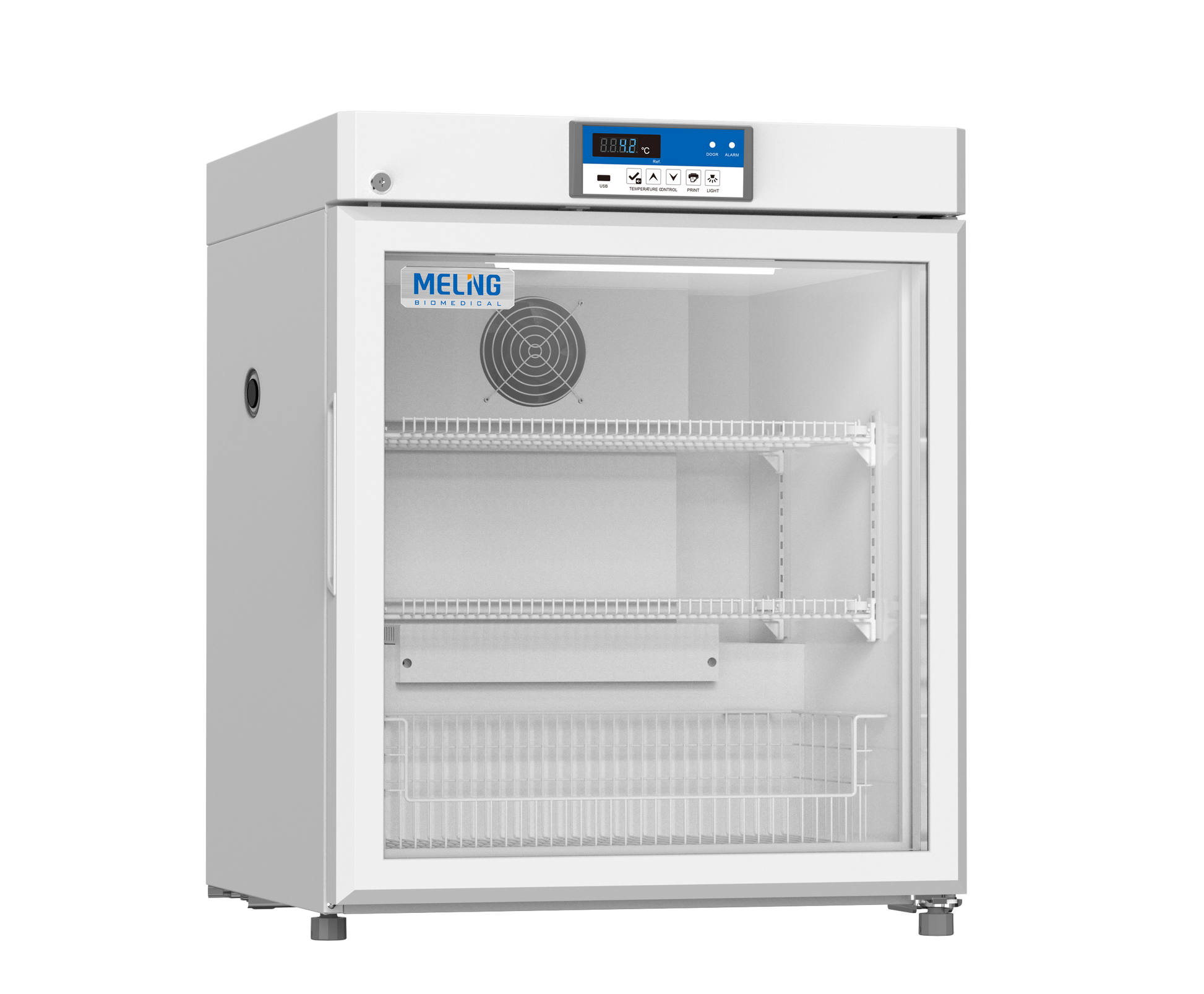

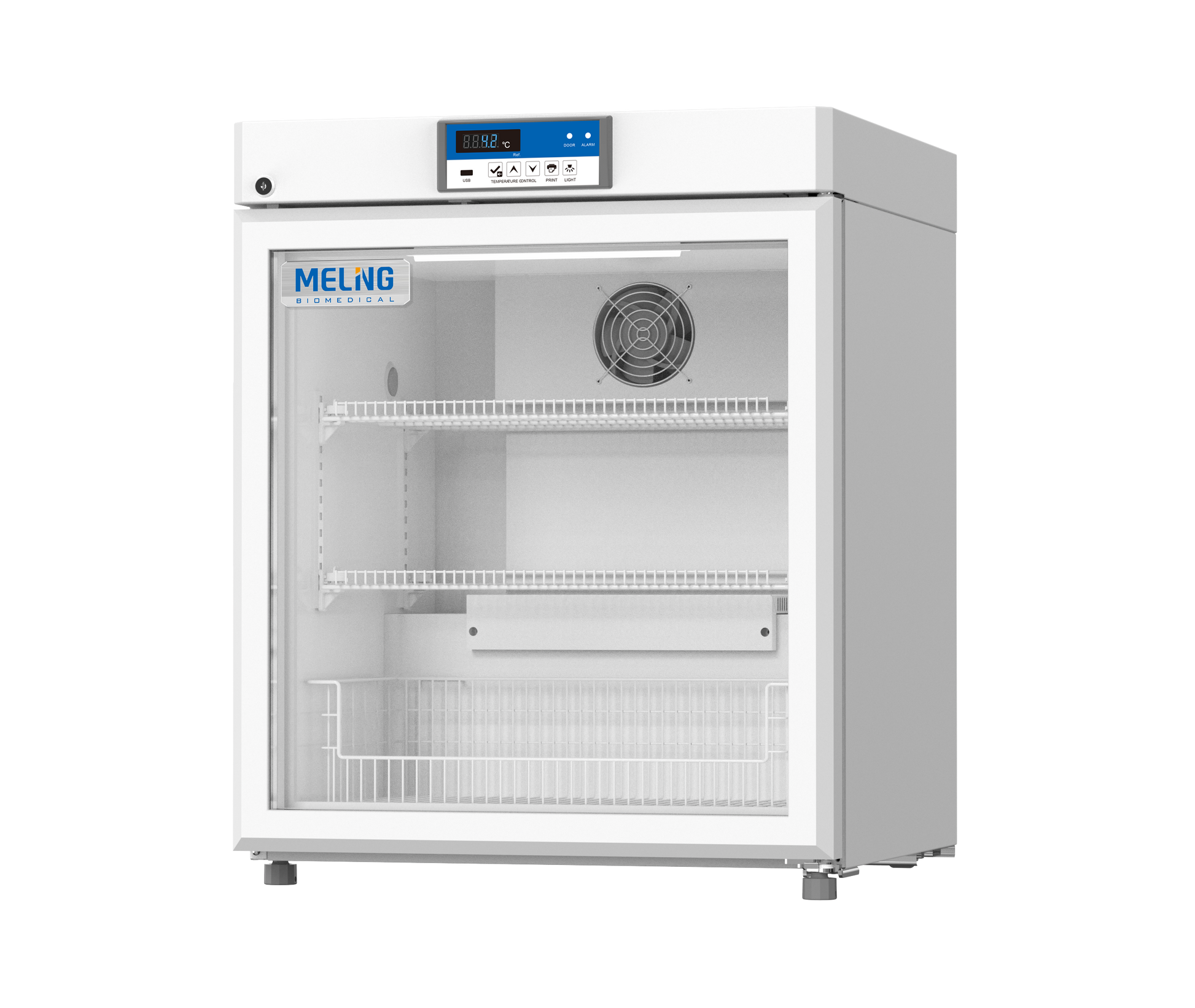

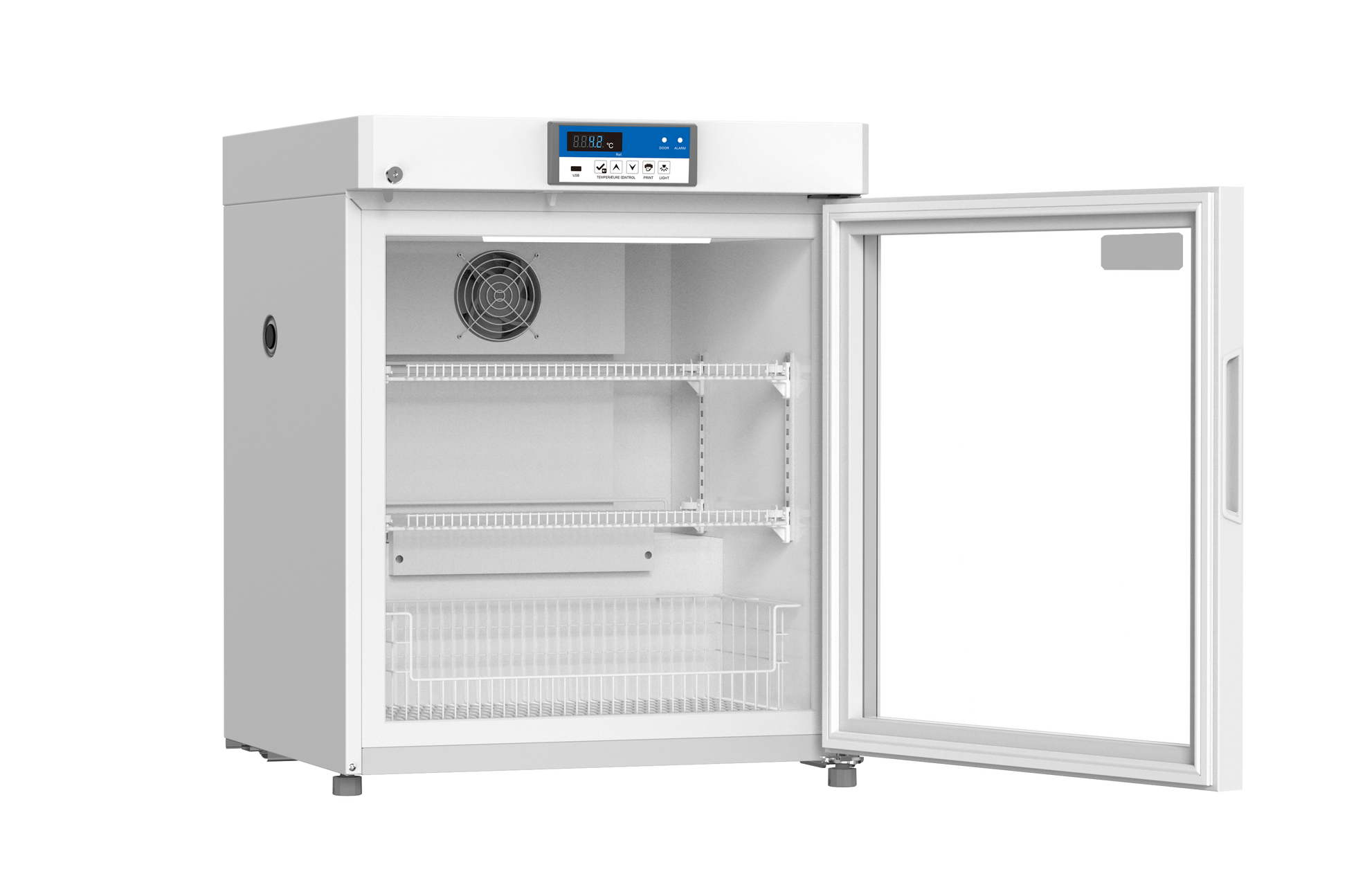

The cabinet measures 650 × 625 × 810 mm (W × D × H) and fits beneath a standard 34-inch-high countertop. A double-pane glass door provides visibility into the storage compartment, which contains three plastic-coated steel wire shelves.
Certifications
The YC-130L is UL/cUL listed for the United States and Canada.
Temperature Control and Refrigeration
The YC-130L combines a microprocessor temperature controller with a digital display that shows temperature in 0.1°C increments. Its refrigeration system uses air cooling and automatic defrosting.
Manufacturer internal prototype testing reports the following typical performance:
- Temperature uniformity: 0.6°C
- Pull-down time to 5°C: 40 minutes
- Temperature recovery after a one-minute door opening: 12 minutes
These figures are based on testing at a 5°C set point and a 25°C ambient temperature. Results may vary between units.
Temperature Logging and Monitoring
The data logger records temperature every 10 minutes and has a capacity of 100,000 data records. Up to 12 months of data can be exported through the USB port. An RS485 interface and remote alarm contact provide additional connection options.
A backup battery maintains real-time temperature display and alarm functions during a power failure.
Alarm Functions
The YC-130L provides alarms for:
- High and low storage temperatures
- High ambient temperature
- Power failure
- Low battery
- Sensor error
- Communication error
- Door ajar
- Data logger not connected
Cabinet Features
- Double-pane glass door with automatic electric heating
- Keyed door lock and concealed handle
- Sprayed-aluminum plate interior
- Three plastic-coated steel wire shelves
- One 23 mm-diameter access port
- Circuit breaker for electrical protection
- Two casters and two levelling feet
Electrical Specifications
The manufacturer’s brochure lists the following paired power supply and rated current values:
| Power supply (V/Hz) | Rated current (A) |
|---|---|
| 110 V / 60 Hz | 2.28 A |
| 220–240 V / 50 Hz | 0.98 A |
| 220–240 V / 50/60 Hz | 1.1 A |
Main Specifications
| Specification | YC-130L |
|---|---|
| Capacity | 130 L / 4.59 cu. ft. |
| Temperature range | 2°C to 8°C |
| Ambient temperature range | 16°C to 32°C |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital, with 0.1°C display increments |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Number of compressors | 1 |
| Refrigerant | R290 / R600a / R134a |
| Exterior material | PCM |
| Interior material | Sprayed aluminum plate |
| External dimensions, W × D × H | 650 × 625 × 810 mm |
| Internal dimensions, W × D × H | 554 × 510 × 588 mm |
| Package dimensions, W × D × H | 720 × 703 × 880 mm |
| Net weight | 51 kg |
| Gross weight | 61 kg / approximately 134.5 lb |
| Shelves | 3 |
| Access port | 1, diameter 23 mm |
| Mobility | 2 casters and 2 levelling feet |
| Temperature recording interval | Every 10 minutes |
| Data logging capacity | 100,000 records |
| Data export | Up to 12 months of data via USB |
| Interfaces | RS485 and remote alarm contact |
| Backup battery | Included |
| Safety listing | UL/cUL |
