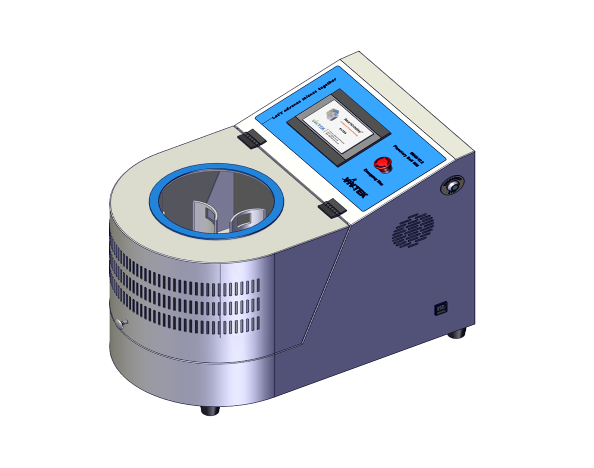

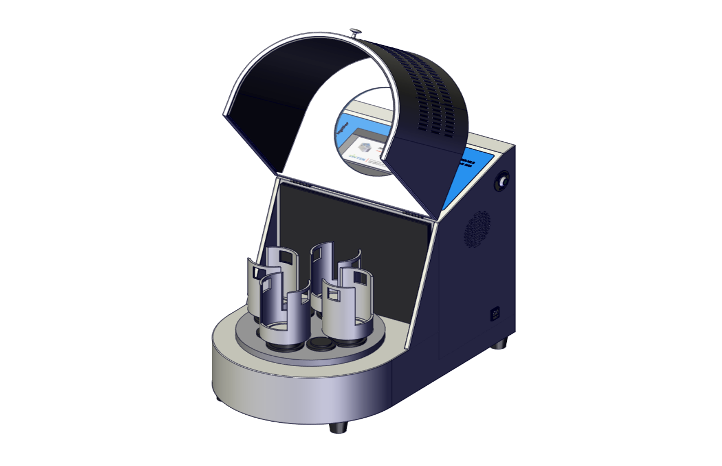

Planetary Ball Mills 0.4-4.0L
Planetary Ball Mills 0.4-4.0L
Regular price
$5,629.00 CAD
Regular price
Sale price
$5,629.00 CAD
Unit price
per
Couldn't load pickup availability
Elegant design, easy to operate
Ideal for wet or dry grinding application
Energy and speed control enables reproducible results
Low vibration rates allow unattended operation
Automatic and programmable control with touch screen interface
10 grinding programs in memory
Auto start if power outrage occurs
Remote control through wifi or internet (Subscribed cloud service required)
Applications: agriculture, biology, biotechnology, materials science, ceramics, mineralogy
Number of jars: 4 stations
Speed: Jar~650RPM (1200RPM for 04S as customized model)

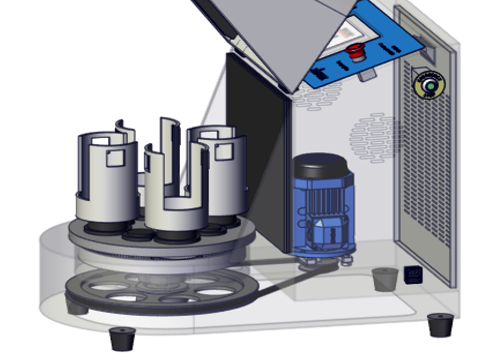

Speed ratio: 1:2 (sun wheel : jar)
Feeding size: <10mm
Grinding results: <1µm (dry) 0.1µm (wet)
Ideal for wet or dry grinding application
Energy and speed control enables reproducible results
Low vibration rates allow unattended operation
Automatic and programmable control with touch screen interface
10 grinding programs in memory
Auto start if power outrage occurs
Remote control through wifi or internet (Subscribed cloud service required)
Applications: agriculture, biology, biotechnology, materials science, ceramics, mineralogy
Number of jars: 4 stations
Speed: Jar~650RPM (1200RPM for 04S as customized model)
Speed ratio: 1:2 (sun wheel : jar)
Feeding size: <10mm
Grinding results: <1µm (dry) 0.1µm (wet)
| Model | Jar Volume | Jar Speed | Dimensions | Voltage |
| BM4X-04 | 25-100mL | 650RPM | 36x55x45cm | AC115/230V |
| BM4X-04S | 25-100mL | 1200RPM | 36x55x45cm | AC115/230V |
| BM4X-20 | 50-500mL | 650RPM | 46x75x60cm | AC115/230V |
| BM4X-40 | 100-1000mL | 650RPM | 48x76x60cm | AC230V |
