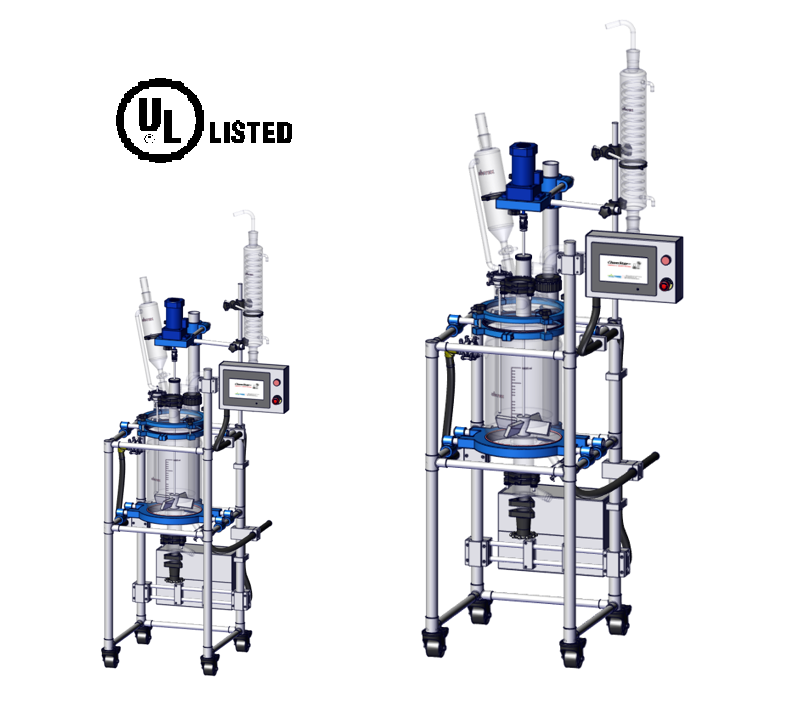

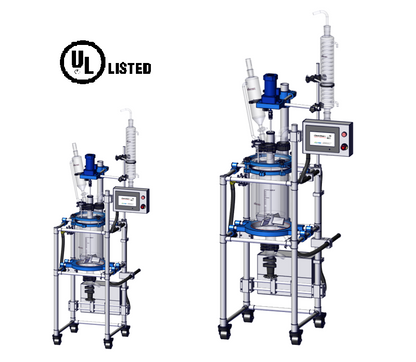

Jacketed Glass Reactors 1-100L (UL/cUL certified)

High quality borosilicate glass G3.3
Stainless steel frame system with easy use clamps

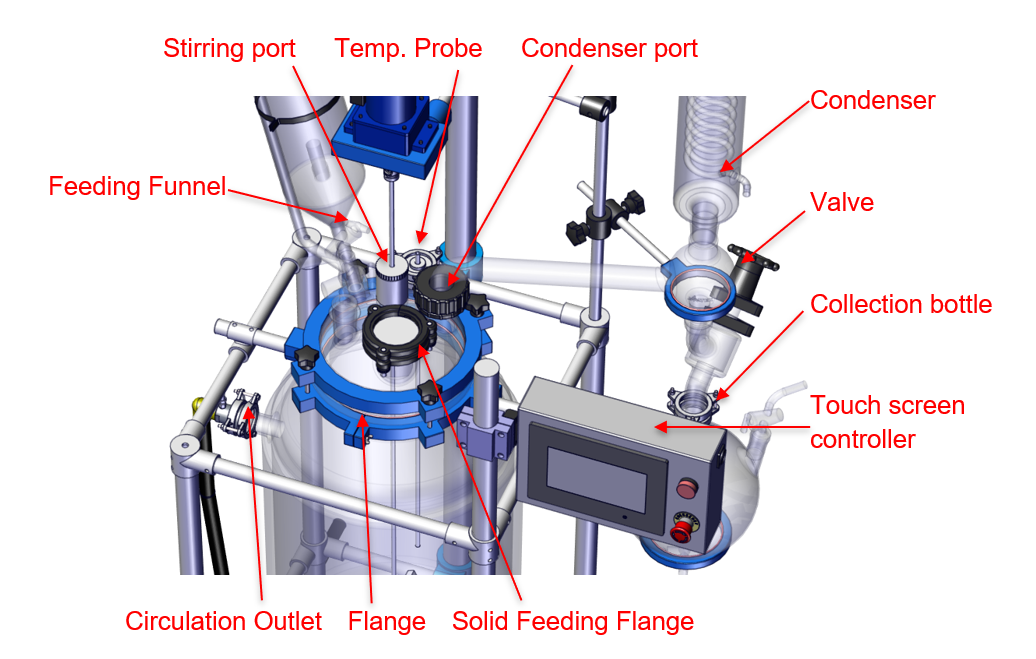

Multiple ports on reactor vessel cover for stirring/condenser/temperature probe/feeding
Automatic and programmable control with touch screen interface
7 -inch touch screen HMI with USB data export
History trend curve for temperature and stirring speed
Remote control through wifi or internet (Easy Access 2.0)
Applications: chemical synthesis and processing at lab scale
Stirring Speed: <600RPM
200W AC gear motor for more power and high torque at low speed range

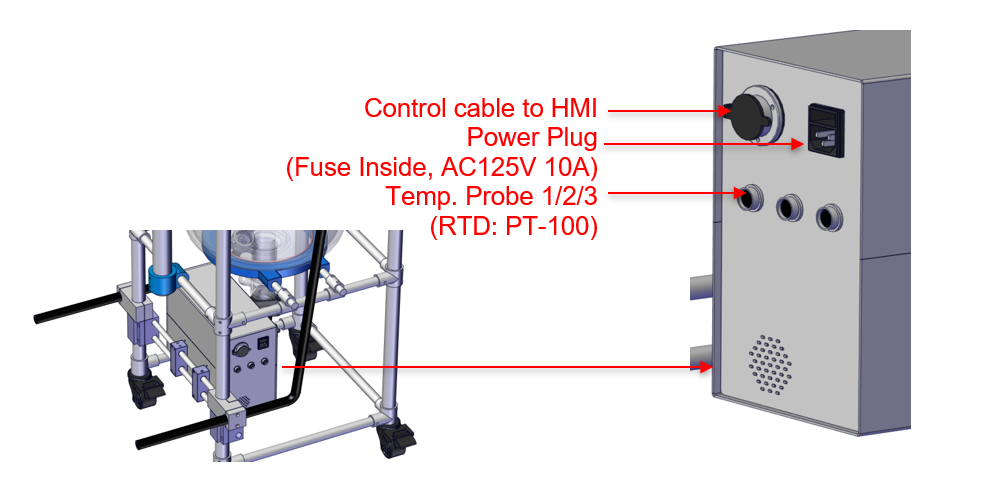

PT-100 temperature probes for reactor vessel and inlet/outlet circulation

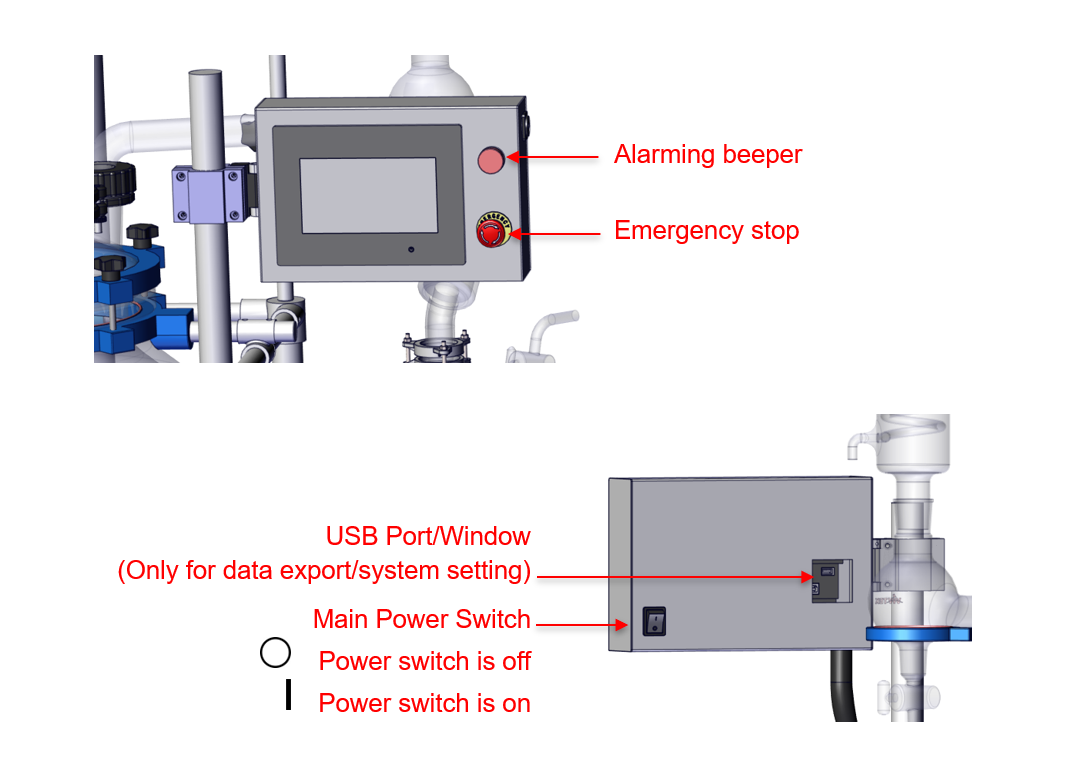

Over-temperature alarm
Stirring paddles or impeller available or as requested
Full glass sets with turn-key solution
UL/cUL Listed E506680

Model	Volume	Jacket Vol.	Dimensions	Voltage
CR-X1GD	1.0L	1.2L	50x50x120cm	AC115/230V
CR-X2GD	2.0L	1.5L	50x50x120cm	AC115/230V
CR-X3GD	3.0L	1.5L	50x50x120cm	AC115/230V
CR-X5GD	5L	2.5L	55x55x150cm	AC115/230V
CR-X10GD	10L	3.5L	60x60x180cm	AC115/230V
CR-X20GD	20L	7.5L	70x70x200cm	AC115/230V
CR-X50GD	50L	15L	70x70x240cm	AC115/230V
CR-X100GD	100L	23L	80x80x240cm	AC115/230V
