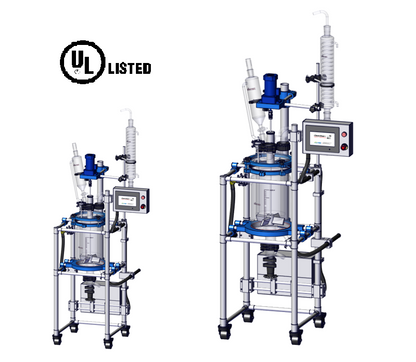

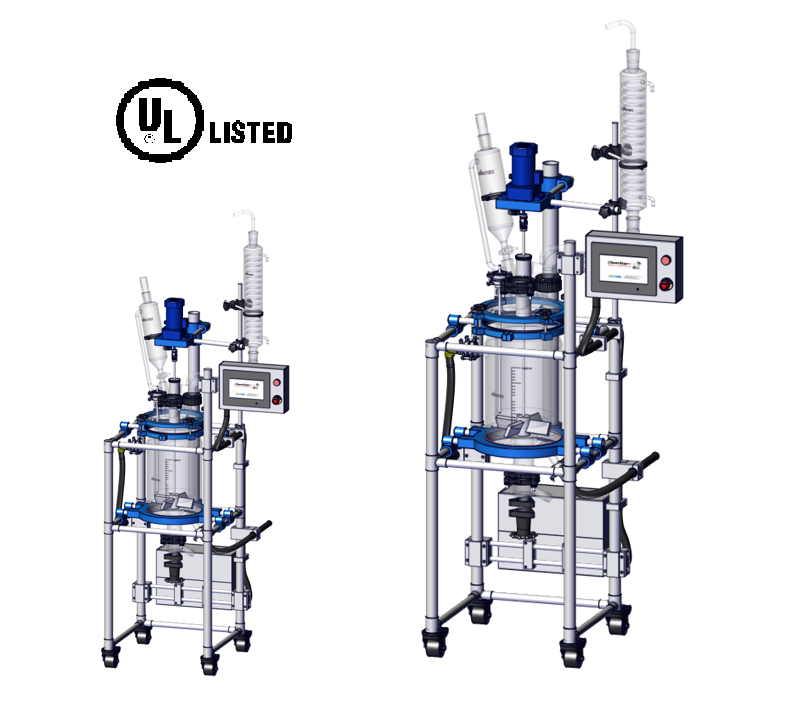

Jacketed Glass Reactors 150-250L (UL/cUL certified)

High quality borosilicate glass G3.3
Stainless steel frame system with easy use clamps

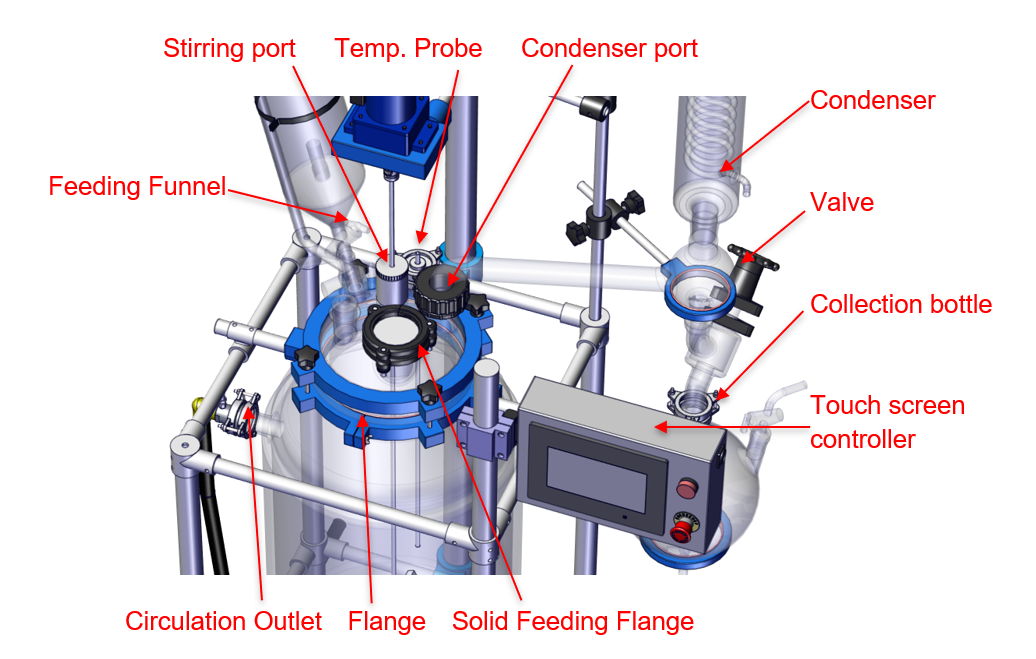

Multiple ports on reactor vessel cover for stirring/condenser/temperature probe/feeding

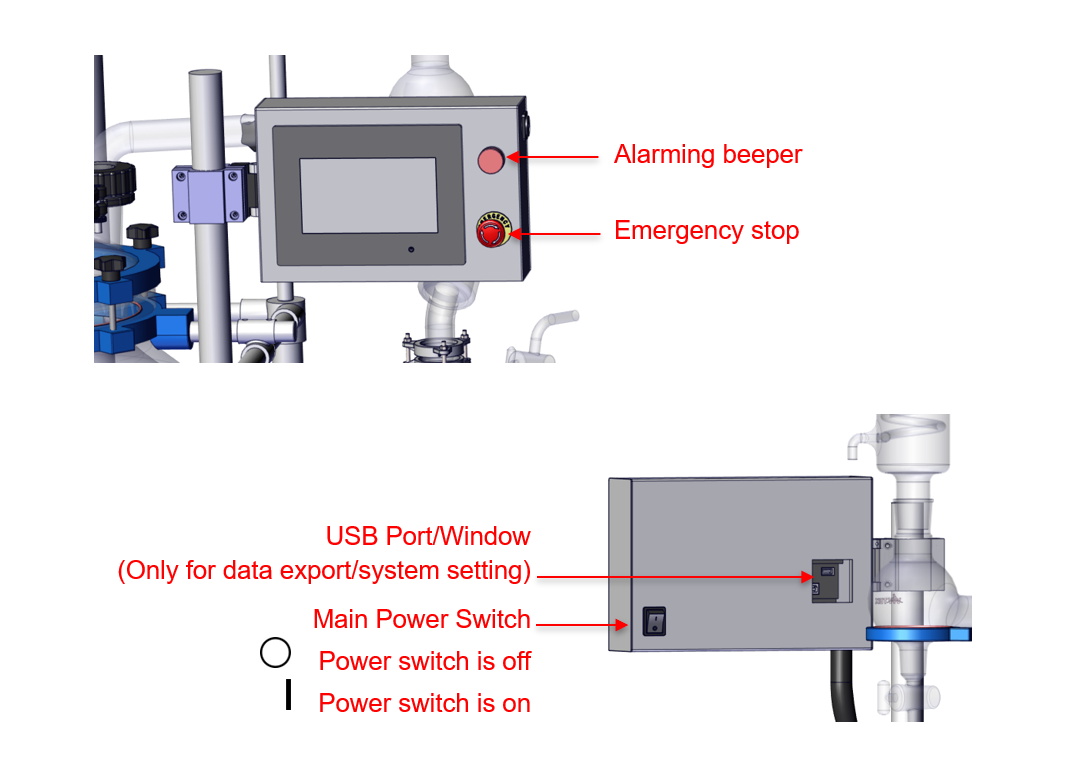

Automatic and programmable control with touch screen interface
7 -inch touch screen HMI with USB data export
History trend curve for temperature and stirring speed
Remote control through wifi or internet (Easy Access 2.0)
Applications: chemical synthesis and processing at lab scale
Stirring Speed: <600RPM
350W AC gear motor for more power and high torque at low speed range
PT-100 temperature probes for reactor vessel and inlet/outlet circulation
Over-temperature alarm
Stirring paddles or impeller available or as requested
Full glass sets with turn-key solution
UL Listed E506680

Model	Volume	Jacket Vol.	Dimensions	Voltage
CR-X150GD	150L	35L	75x75x250cm	AC115/230V
CR-X200GD	200L	40L	100x100x300cm	AC115/230V
CR-X250GD	250L	45L	100x100x300cm	AC115/230V
