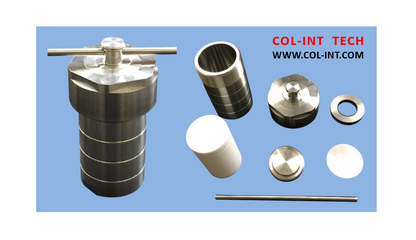

Hydrothermal Autoclave Reactors

Hydrothermal autoclave reactors, also called acid digestion vessels
SUS304 sleeve, easy assembling, loading and unloading
Inner polymer liner chamber PTFE or PPL (modified PTFE)
PTFE liner chamber up to 200 °C, 280 °C for PPL chambers
Pressure up to 10MPa (1450psi) at temperature <300 °C

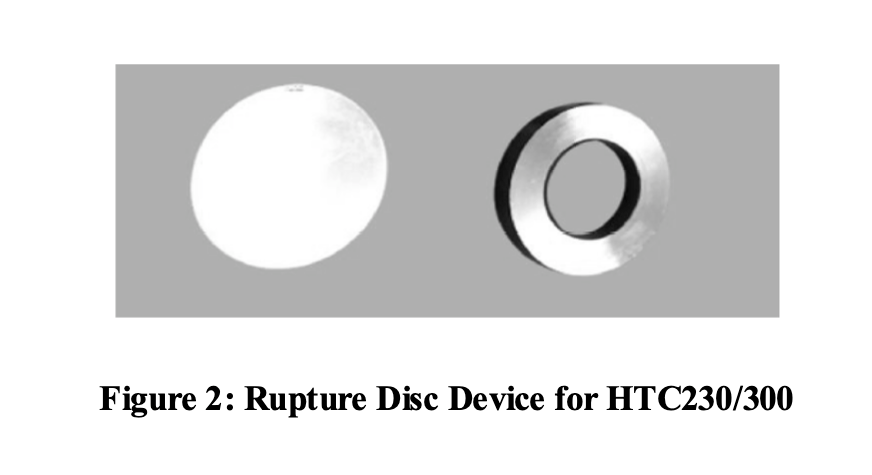

Rupture disc safety device is optional (200°C, 12MPa, SUS316, certified)

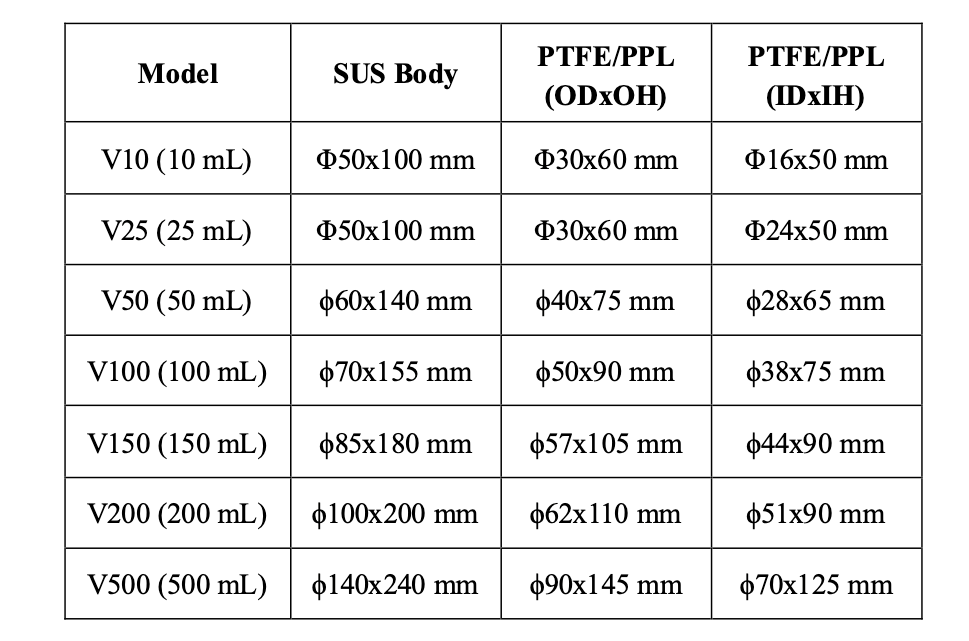

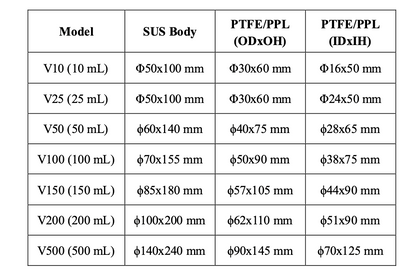

Vessel volumes 10/25/50/100/150/200/500mL

Under Patent: ZL 201921413544.5 (VivTek Instruments)
