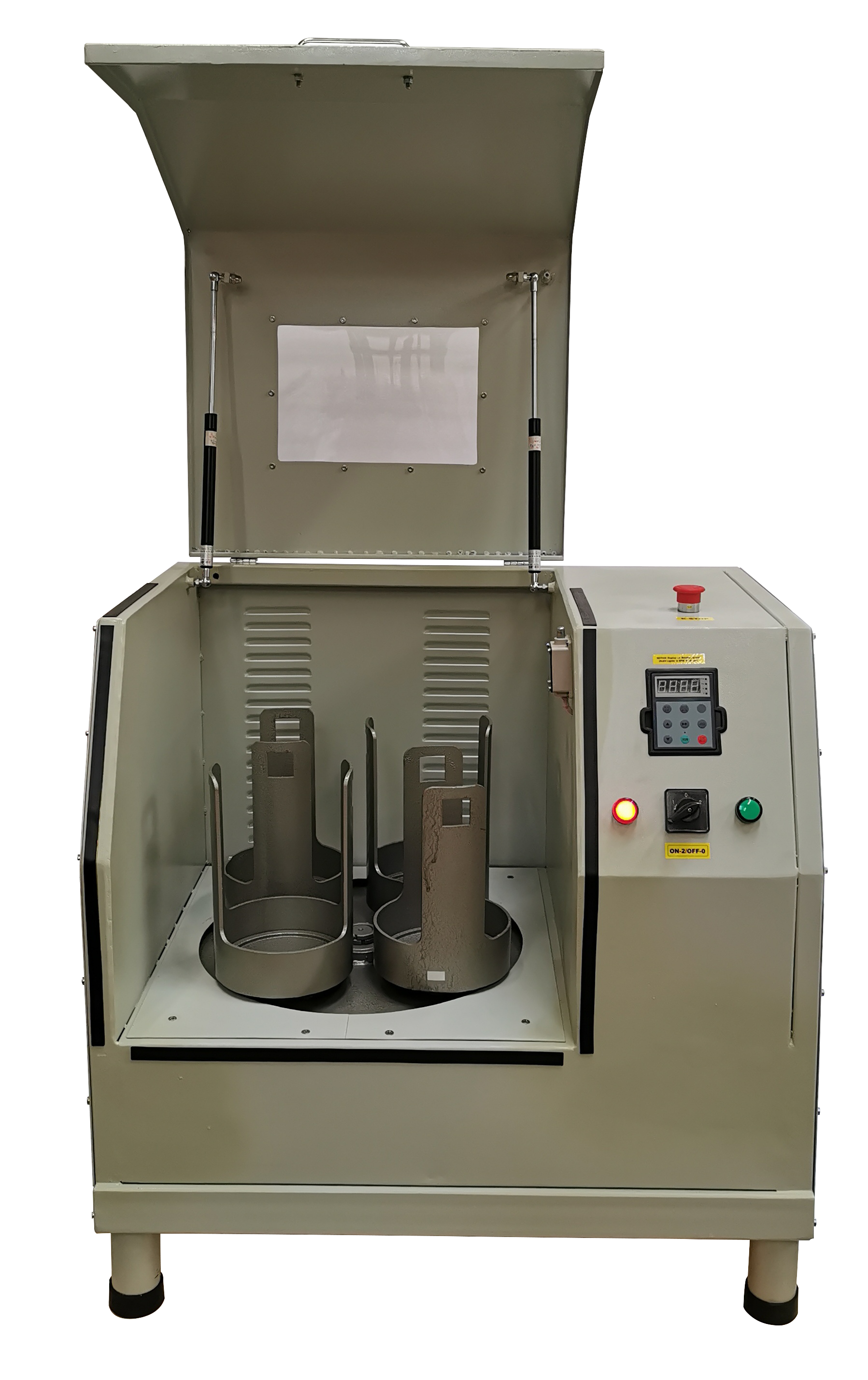

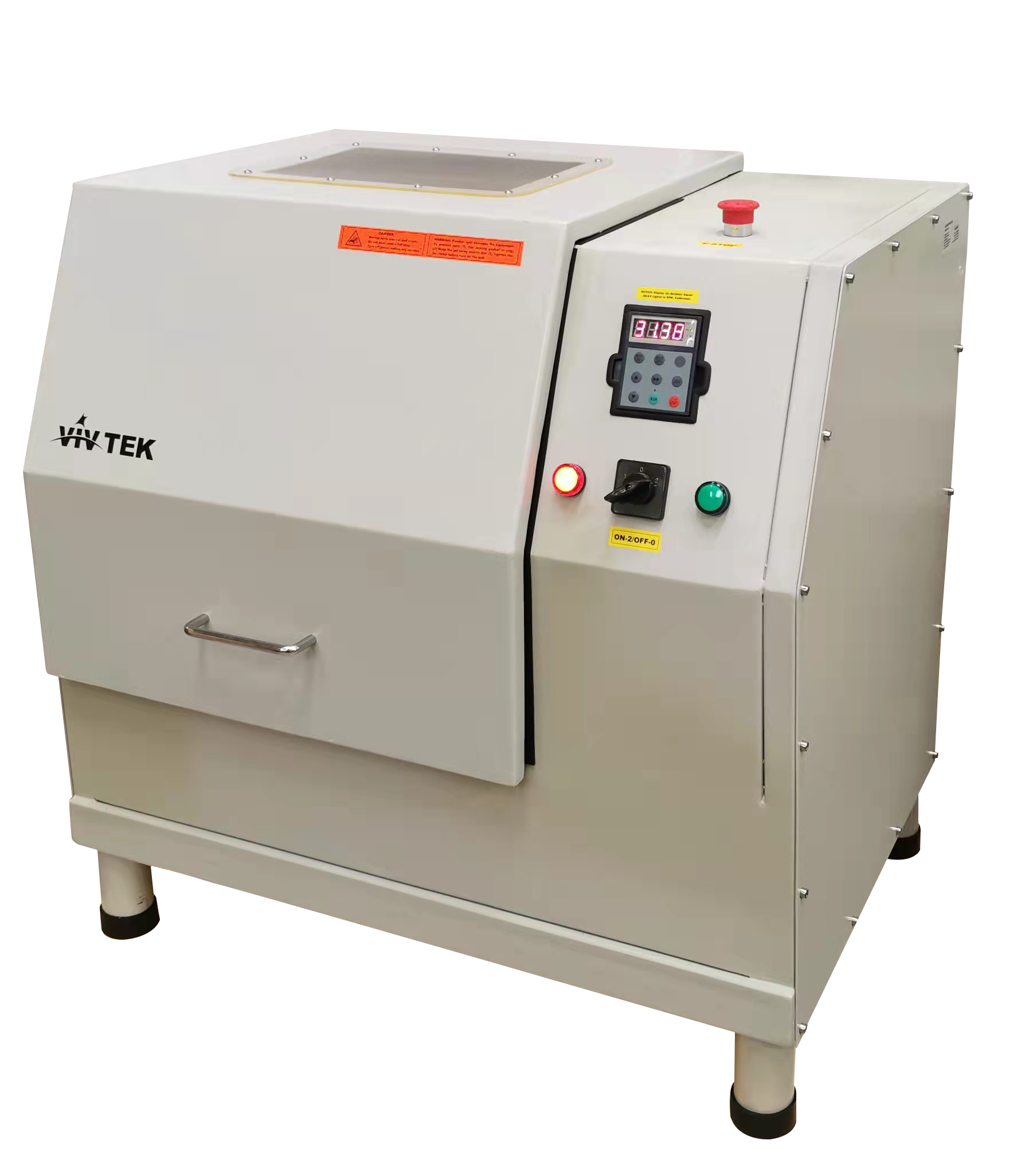

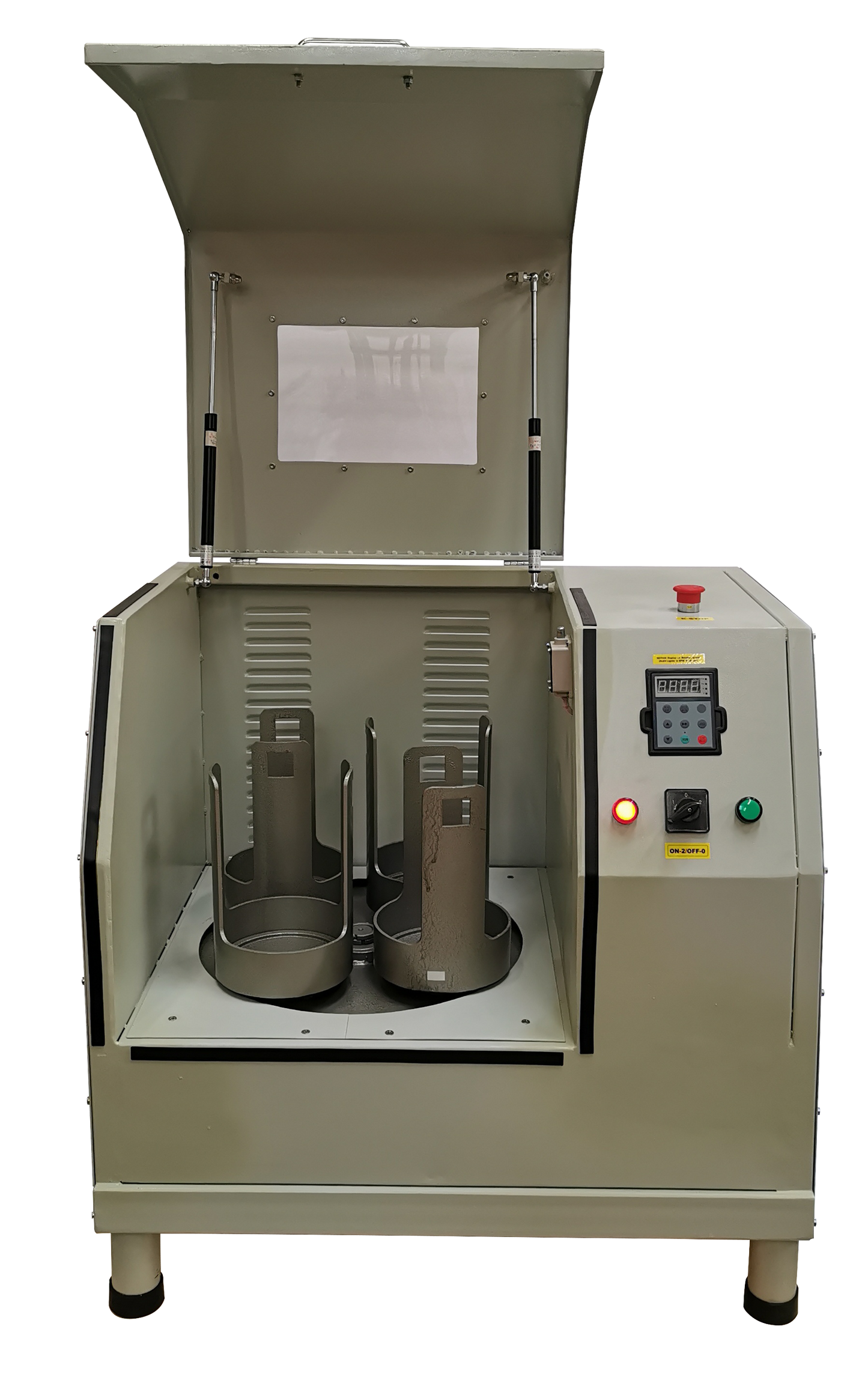

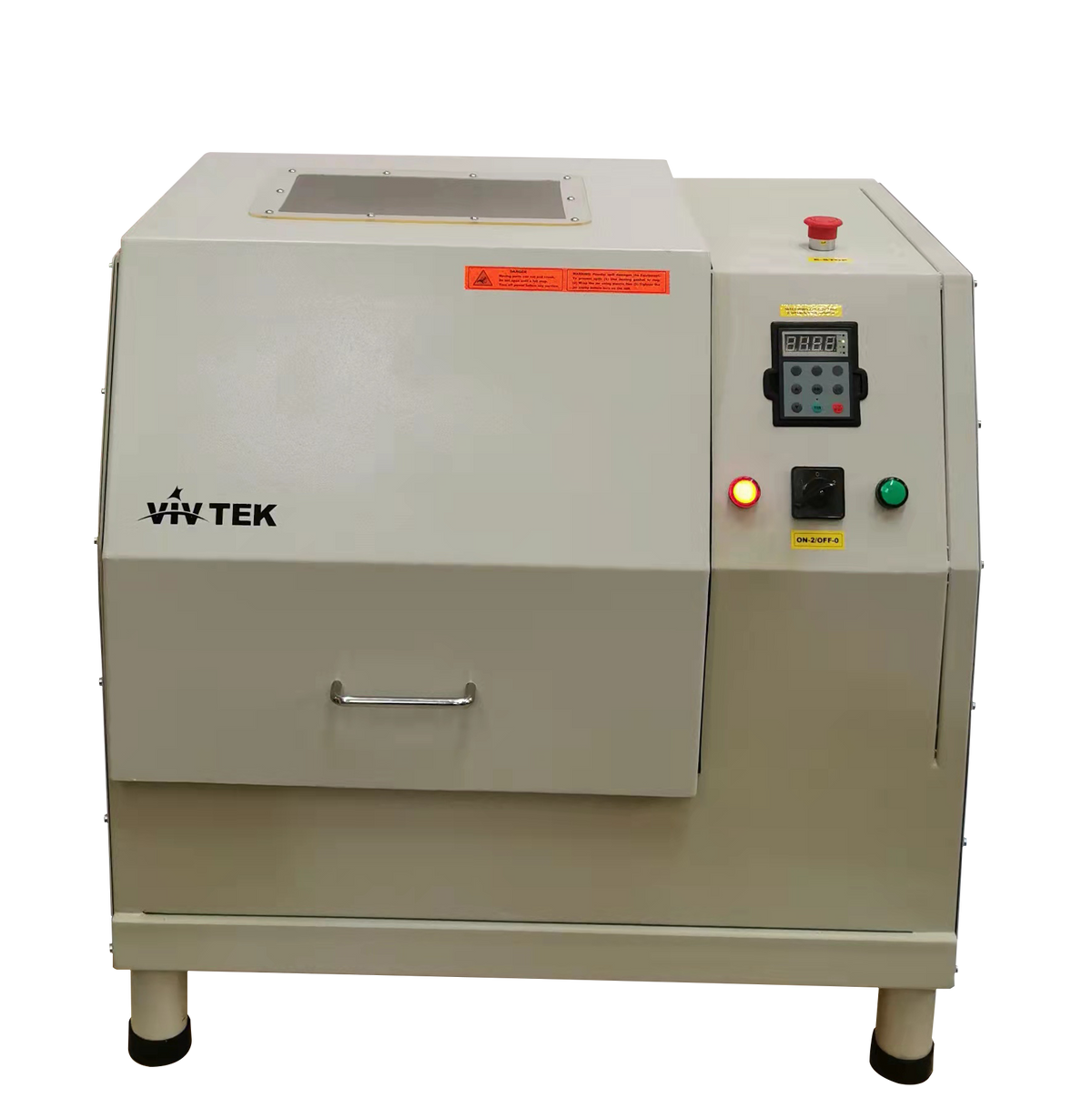

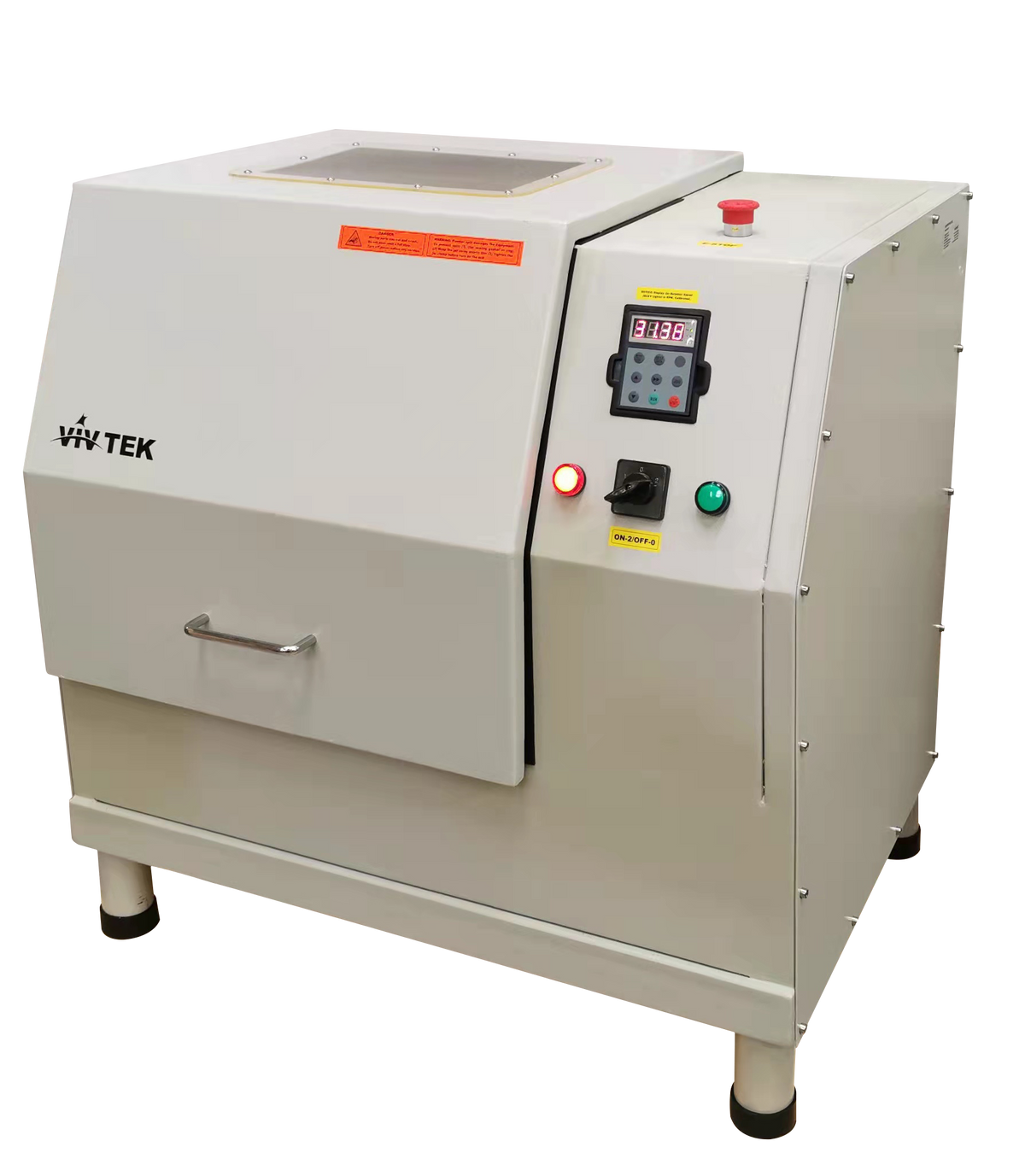

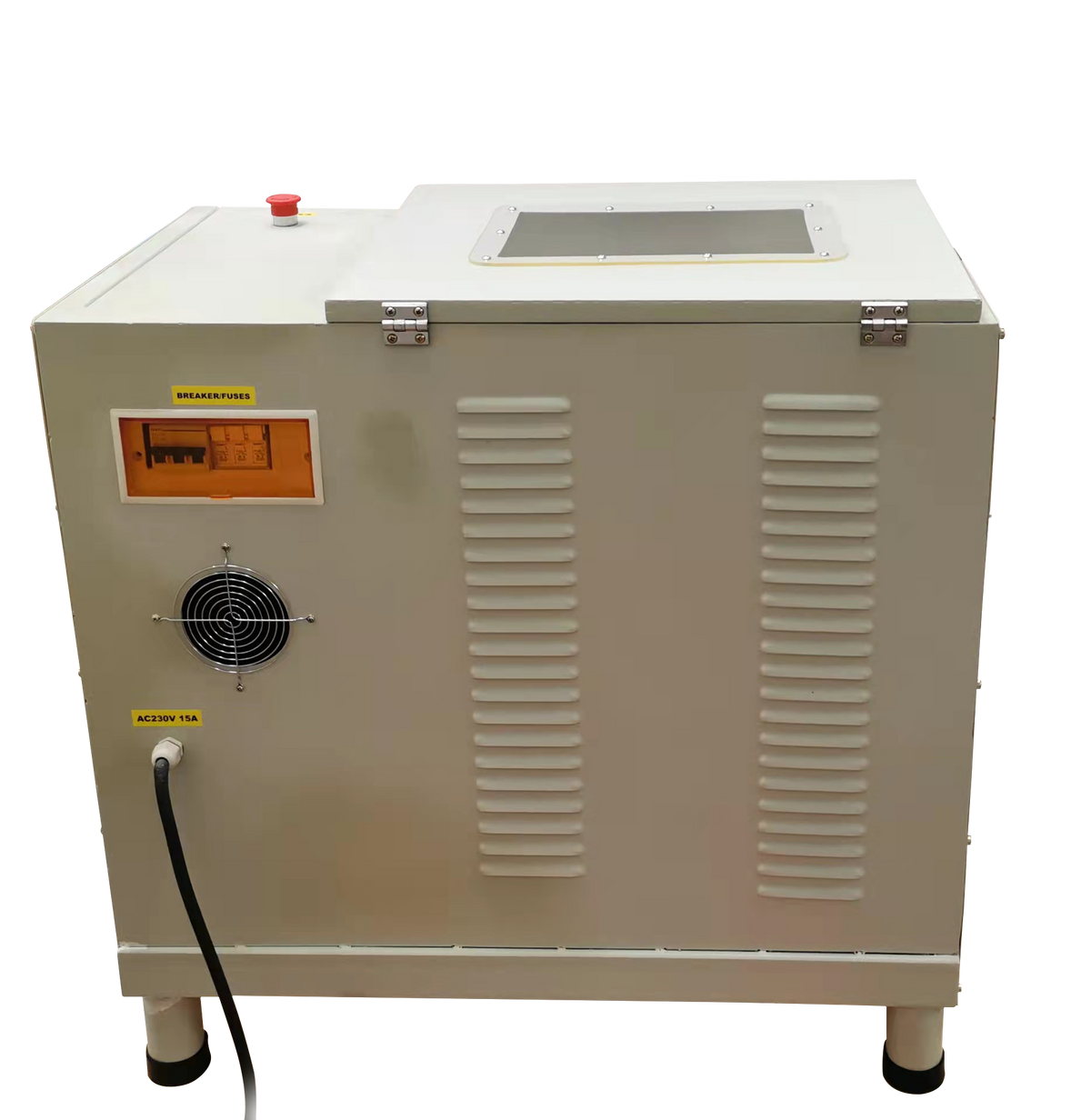

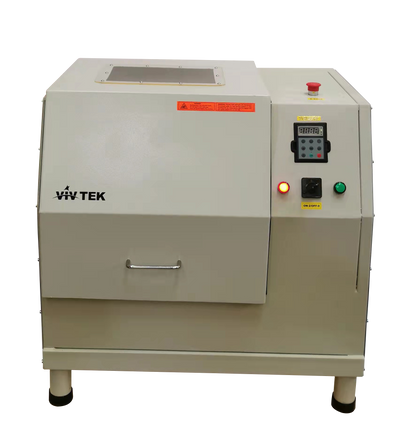

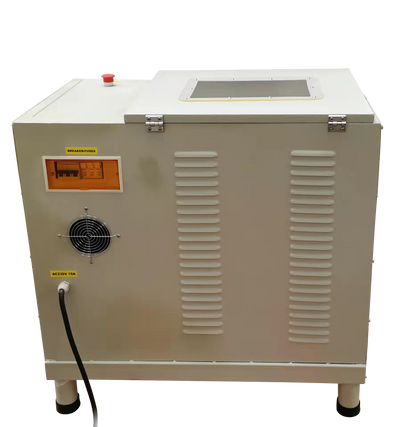

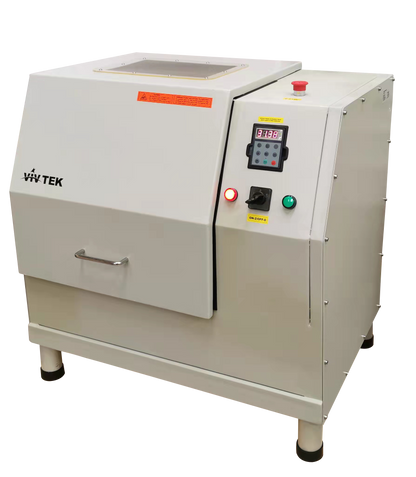

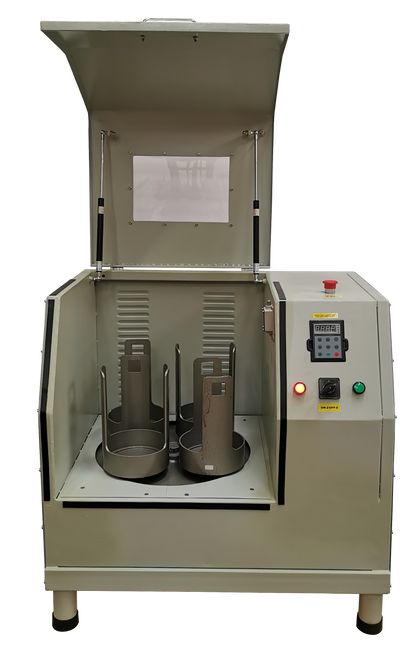

Planetary Ball Mills 10-100L
Planetary Ball Mills 10-100L
Regular price
$20,471.00 CAD
Regular price
Sale price
$20,471.00 CAD
Unit price
per
Couldn't load pickup availability
Elegant design, easy to operate
Ideal for wet or dry grinding application
Energy and speed control enables reproducible results
Low vibration rates allow unattended operation
Automatic and programmable control with touch screen interface
Remote control through wifi or internet
Applications: agriculture, biology, biotechnology, materials science, ceramics, mineralogy
Sunwheel Speed: 100-220RPM
Speed ratio: 1:2 (sunwheel : jar)
Feeding size: <10mm
Grinding results: <1µm (dry) 0.1µm (wet)
Ideal for wet or dry grinding application
Energy and speed control enables reproducible results
Low vibration rates allow unattended operation
Automatic and programmable control with touch screen interface
Remote control through wifi or internet
Applications: agriculture, biology, biotechnology, materials science, ceramics, mineralogy
Sunwheel Speed: 100-220RPM
Speed ratio: 1:2 (sunwheel : jar)
Feeding size: <10mm
Grinding results: <1µm (dry) 0.1µm (wet)
Model |
No. of Jars |
RPM |
Jar Volume |
Dimensions |
Voltage |
BM4X-X10 | 4 | 440 | 1.0-3.0L | 75x60x75cm | AC230V |
BM4X-X20 | 4 | 280 | 2.0-5.0L | 100x75x90cm | AC230V |
BM4X-X60 | 4 | 220 | 5.0-15.0L | 125x80x100cm | AC480V 3P |
BM4X-X100 | 4 | 200 | 10.0-25.0L | 150x100x125cm | AC480V 3P |
