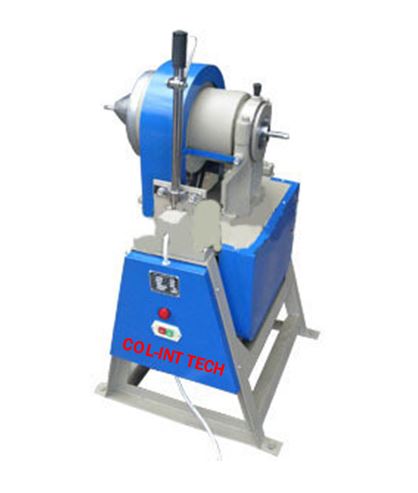

Conical Ball Mills 0.25-4.0kg

Conical shaped grinding chamber for both rods and balls
Durable steel structure for lab fast grinding
Ideal for mineral and soil samples
Feed size: <2-3mm (pre-grinding required for large particles)
Grinding results: <74microns 200mesh

Model 01: CBM-D180 (0.25kg sample loading)
Chamber Dimensions: Diameter 180mm length 200mm
Rotation speed: 120 rpm
Processing capacity: ~250 grams mineral sample
Grinding rods: D18x185 10pcs D20x185 9pcs
Grinding balls: D20 100pcs D25 26pcs D30 5pcs
Motor: 250watts, 1400rpm
Electricity AC115/230V 50/60Hz
Product dimensions 1052×600×1160mm
Product weight 200kg/450lbs

Model 02: CBM-D240 (1.0kg sample loading)
Chamber Dimensions: Diameter 240mm length 90mm
Rotation speed 96 rpm
Processing 500-1000grams sample per batch
Grinding rods D15x286 33pcs D18x286 13pcs D20x286 6pcs
Grinding balls D20 290pcs D25 115pcs D30 37pcs
Motor 750watts, 1400rpm
Electricity AC230V 50/60Hz
Product dimensions 1052×620×1160mm
Product weight 250kg/550lbs

Model 03: CBM-D280 (4.0kg sample loading)
Chamber Dimensions: Diameter 280mm length 300mm
Rotation speed 96 rpm
Processing 2000-4000grams sample per batch
Grinding rods D15x286 33pcs D18x286 13pcs D20x286 6pcs
Grinding balls D20 290pcs D25 115pcs D30 37pcs
Motor 550watts, 1400rpm
Electricity AC230V 50/60Hz
Product dimensions 1052×620×1160mm
Product weight 300kg/680lbs
