VivTek Instruments
Bulk Tray Freeze Dryer with Heating -60 °C
Bulk Tray Freeze Dryer with Heating -60 °C
Regular price
$2,093.00 CAD
Regular price
Sale price
$2,093.00 CAD
Unit price
per
Couldn't load pickup availability
High performance refrigerating system
Separate chamber for ice condensing and drying, easy operation and fast drying
Quiet operation, 24 hours continuous and unattended
Stainless steel inner surfaces, excellent anti-corrosion
Clear acrylic glass drying chamber door, drying process observable
Purge valve optional for inner gas protection
Heated sample shelves, temperature controllable by microprocessor
Sample heating temperature (-45~55°C) programmable by PID
Digital LCD display and drying curve plotting
Ice condenser temperature <-60°C
Vacuum limit <10Pa
Vacuum pump AC230V 550W, 240L/min 9.0cfm or VacStar-RV16 15.0cfm
Voltage input AC230V 1P or 3P 50/60Hz
Warranty: 12-month manufacturer limited
Separate chamber for ice condensing and drying, easy operation and fast drying
Quiet operation, 24 hours continuous and unattended
Stainless steel inner surfaces, excellent anti-corrosion
Clear acrylic glass drying chamber door, drying process observable
Purge valve optional for inner gas protection
Heated sample shelves, temperature controllable by microprocessor
Sample heating temperature (-45~55°C) programmable by PID
Digital LCD display and drying curve plotting
Ice condenser temperature <-60°C
Vacuum limit <10Pa
Vacuum pump AC230V 550W, 240L/min 9.0cfm or VacStar-RV16 15.0cfm
Voltage input AC230V 1P or 3P 50/60Hz
Warranty: 12-month manufacturer limited
| Model | Area | Shelves | Tray Size | Dimensions |
Compressor |

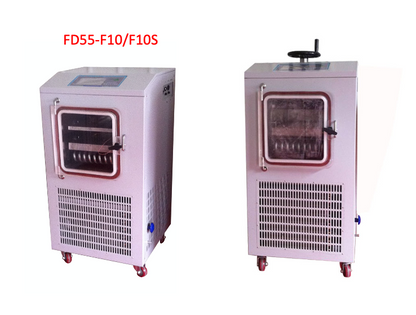

| FD55-F10 | 0.2m2 | 2 | 27x40cm | 65x55x100cm |
735W |
| FD55-F10S | 0.1m2 | 1 | 27x40cm | 65x55x120cm |
735W |

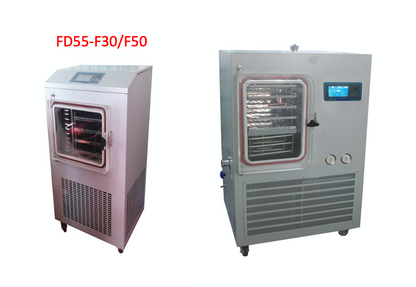

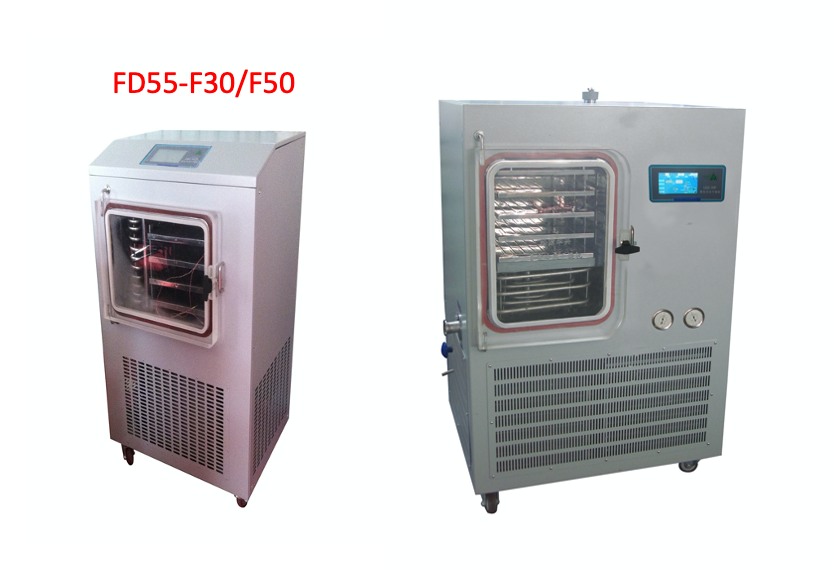

| FD55-F30 | 0.4m2 | 4+1 | 30x32cm | 65x80x140cm |
1500W |
| FD55-F50 | 0.7m2 | 4+1 | 36x50cm | 75x100x150cm | 3000W |
| Model | Spacing | Serum Bottles | e-Heating | Capacity | Voltage |
| Φ22/ Φ16/ Φ12 | |||||
| FD55-F10 | 70mm | 185/385/600 |
400W | 3kg/day |
AC230V 1P |
| FD55-F10S | 70mm | 185/385/600 |
400W | 2kg/day |
AC230V 1P |
| FD55-F30 | 50mm | 370/770/1200 |
800W | 6kg/day | AC230V 1P |
| FD55-F50 | 4+1 | 550/1150/2400 |
1600W | 10kg/day | AC230V 3P |
