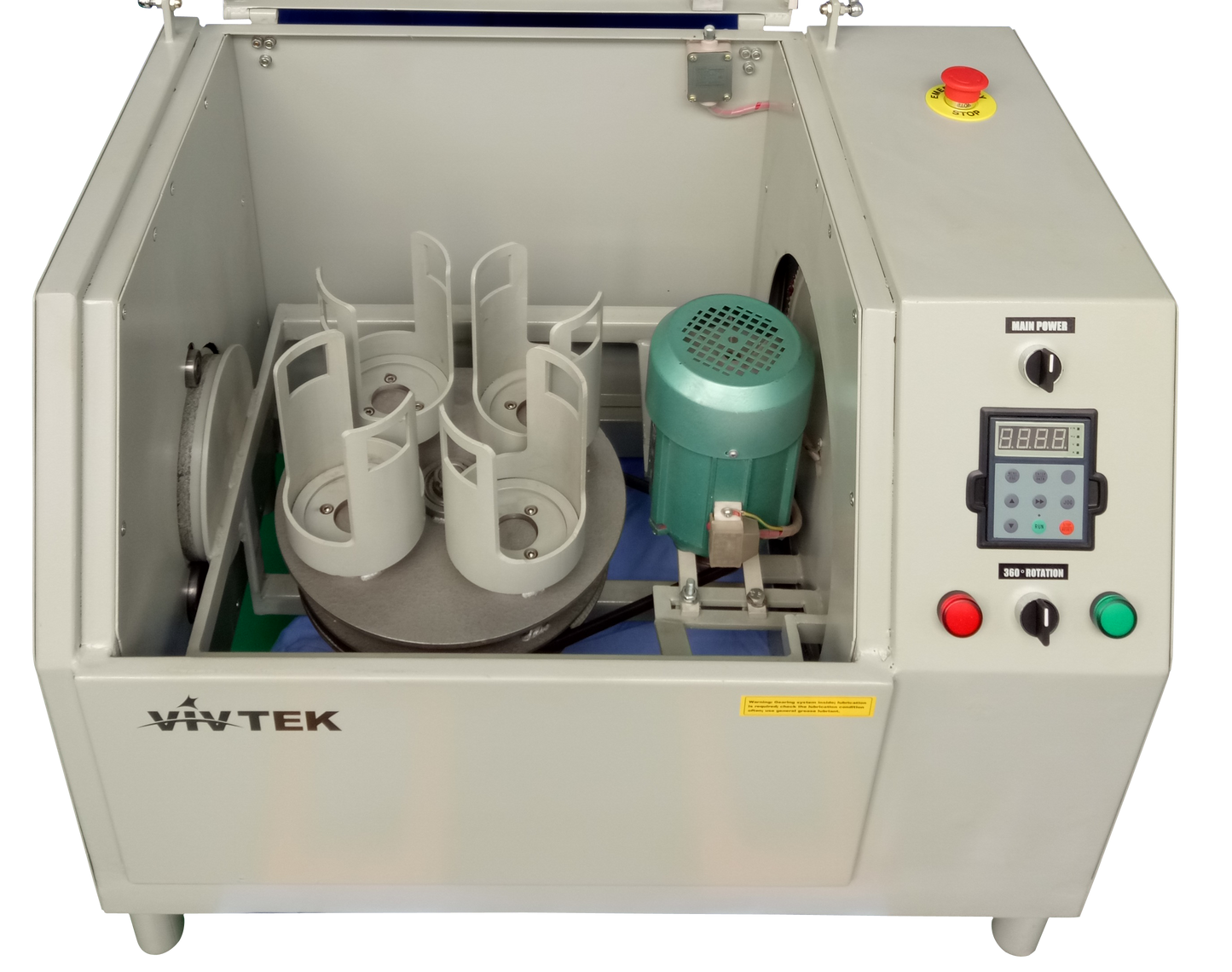

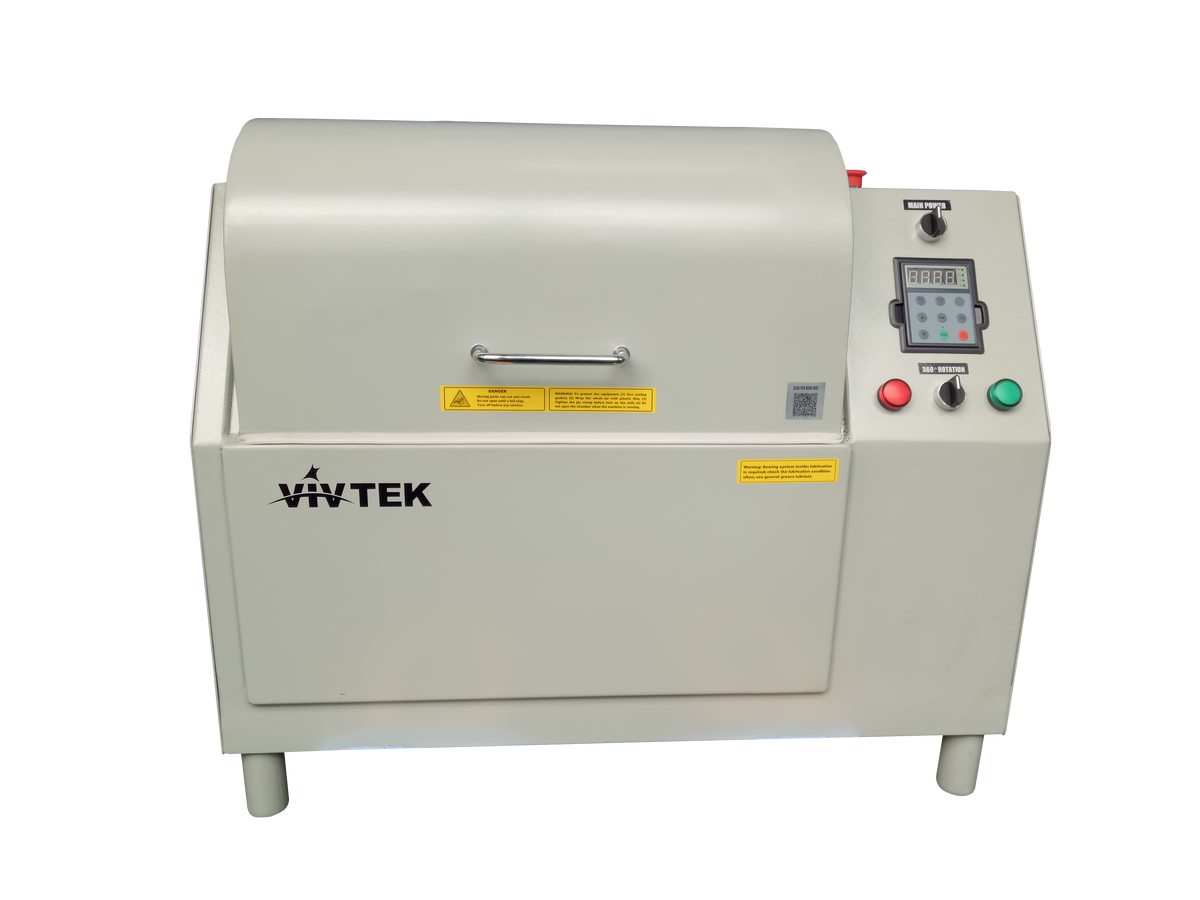

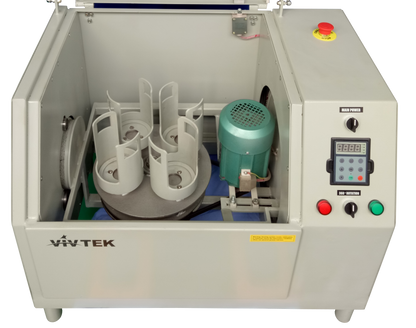

Planetary Ball Mills 0.4-10L 3D Movement

Elegant design, easy to operate
Ideal for wet or dry grinding application
Energy and speed control enables reproducible results
Low vibration rates allow unattended operation
Automatic and programmable control with touch screen interface
Remote control through wifi or internet
3D movement of grinding media to maximize grinding effects
Applications: agriculture, biology, biotechnology, materials science, ceramics, mineralogy
Sunwheel Speed: 200~325RPM
Speed ratio: 1:2 (sunwheel : jar)
Feeding size: <10mm
Grinding results: <1µm (dry) 0.1µm (wet)

Model	No. of Jars	RPM	Jar Volume	Dimensions	Voltage
XBM4X-04	4	650	25-100mL	36x55x35cm	AC115/230V
XBM4X-20	4	650	50-500mL	40x60x40cm	AC115/230V
XBM4X-40	4	650	100-1000mL	45x65x50cm	AC230V
XBM4X-X10	4	440	1.0-2.5L	65x115x75cm	AC230V 3P
XBM4X-X20	4	280	2.0-5.0L	80x140x100cm	AC230V 3P
XBM4X-X60	4	220	5-15L	100x160x125cm	AC480V 3P
XBM4X-X100	4	200	20-25L	125x180x150cm	AC480V 3P
