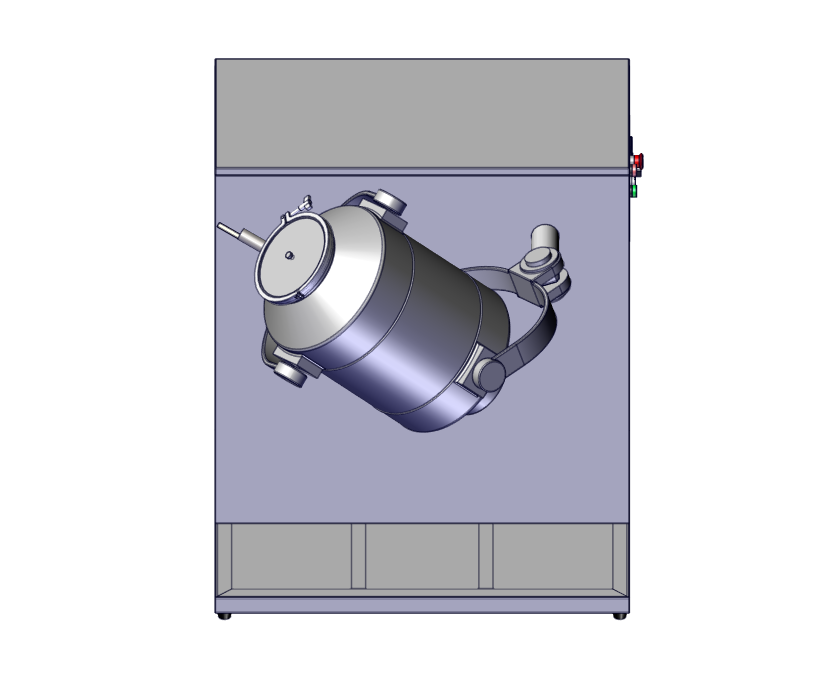

3D Mixers --- Laboratory and Production
3D Mixers --- Laboratory and Production
Regular price
$8,353.00 CAD
Regular price
Sale price
$8,353.00 CAD
Unit price
per
Couldn't load pickup availability
Compact designing with newly designed gearing system
Full steel structure with stainless steel finishing (surface polished)
Gear box and high performance motor controlled by Delta VFD
Loading volume 50-80%
Speed 0-20RPM for lab models
Speed 0-12RPM for production models
Digital timing device controller
Over surge protection
Voltage input AC230V single phase for lab model
AC230V three phase for production model.
| Model | Volume | Max Loading | Speed | Motor | Dimensions |
| 3DM-V5 | 5L | 5kg | 0-20RPM | 370W | 36x32x36inch |
| 3DM-V10 | 10L | 8kg | 0-20RPM | 370W | 36x32x36inch |
| 3DM-V20 | 20L | 15kg | 0-20RPM | 550W | 36x34x36inch |
| 3DM-V50 | 50L | 40kg | 0-20RPM | 750W | 36x50x48inch |
| 3DM-V100 | 100L | 80kg | 0-12RPM | 1500W | 48x60x60inch |
| 3DM-V200 | 200L | 150kg | 0-12RPM | 2200W | 50x65x60inch |
| 3DM-V500 | 500L | 400kg | 0-12RPM | 5500W | 72x100x65inch |
